HP Compaq dc5750 SFF Supplementary Guide

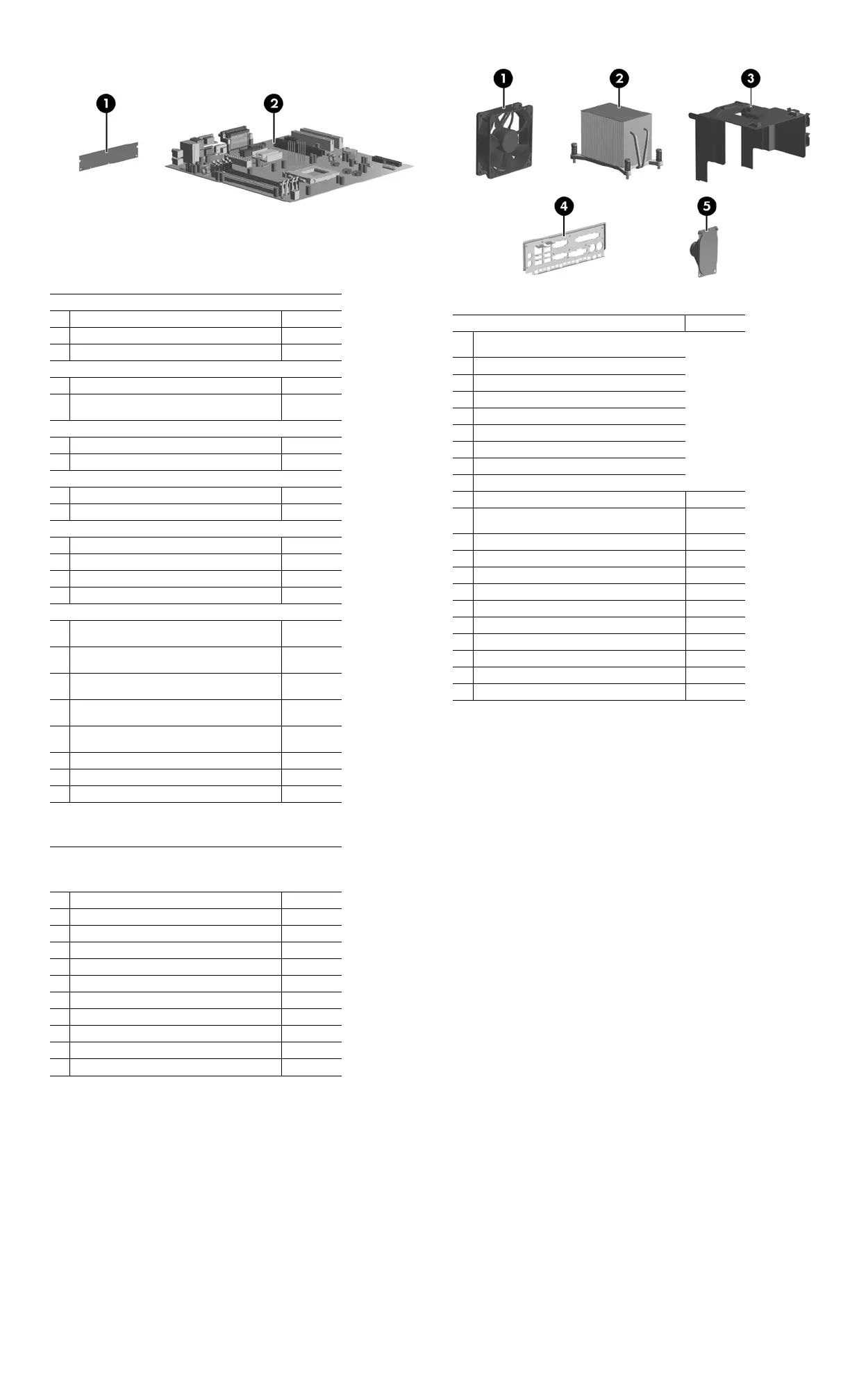

dc5750 Illustrated Parts & Service Map, SFF Chassis 439135-001 page 2
Standard and Optional Boards
Memory modules, non-ECC, DDR2
1 256 MB, PC2-5300, CL5
396519-001
* 512 MB, PC2-5300, CL5
396520-001
* 1 GB, PC2-5300, CL5
398038-001
System Boards with thermal grease, alcohol pad, and CPU socket cover
2 Standard board 432861-001
* Board for vPro applications without embedded secu-
rity (Russia only)
434370-001
AMD Sempron64 processor with 800 MHz HyperTransport
* 3400+, 1.8 GHz, 256K cache, 1.6 GHz FSB 433506-001
* 3600+, 2.0 GHz, 256K cache, 1.6 GHz FSB 435919-001
AMD Athlon64 processor with 1.0 GHz HyperTransport,
* 3500+, 2.2 GHz, 512 KB cache, 2.0 GHz FSB 435911-001
* 3800+, 2.4 GHz, 512 KB cache, 2.0 GHz FSB 435912-001
AMD Athlon 64 Dual Core processor with 1.0 GHz HyperTransport
3800+, 2.0 GHz, 1.0 MB cache, 2.0 GHz FSB 435913-001
* 4200+, 2.2 GHz, 1.0 MB cache, 2.0 GHz FSB 435914-001
4600+, 2.4 GHz, 1.0 MB cache, 2.0 GHz FSB 435915-001
* 5000+, 2.6 GHz, 1.0 MB cache, 2.0 GHz FSB 435917-001
Other boards
* ATI Radeon X1300Pro, 256 MB, PCIe, with DVI-I
and S-Video output
413023-001
* ATI Radeon X1300Pro, 256 MB, PCIe, with
DMS59 output and S-Video input
432947-001
* ATI Radeon X1600XT, 256 MB, PCIe, with DVI-I
and S-Video output
419543-001
* Standard 1394 PCI card with 2 external and 1
internal ports, FH
393308-001
* Standard 1394 PCI card with 2 external and 1
internal ports, LP
393307-001
* Broadcom 5751 Gigabit NIC, PCIe, FH 393626-001
* Agere International 56K Modem, FH 398661-001
* DVI-I to VGA graphics adapter 202997-005
* Not shown
LP = Low profile
FH = Full height
Mass Storage Devices (not illustrated)
Diskette drive with bezel and cable 431452-001
Media card reader, 3.5-in 407187-001
Media card reader, 5.25-in 412838-001
52X SATA CD-ROM drive (APJ only) 419469-001
16X SATA DVD-ROM drive 419496-001
48X SATA CD-ROM drive 419635-001
16X SATA DVDRW L drive with LightScribe 419498-001
16x/48x Combo drive 419497-001
80-GB\7200 RPM SATA hard drive, 8MB cache 432392-001
160-GB\7200 RPM SATA hard drive, 8MB cache 432393-001
250-GB\7200 RPM SATA hard drive, 8MB cache 432394-001
Miscellaneous Parts
Miscellaneous screw kit, includes: 414180-001
* #6-32 x .250 hitop screw with serrations
(192308-001)(14 ea)
* (192308-002) (4 ea)
* (192308-003) (6 ea)
* (106902-001) (2 ea)
* (334248-001) (4 ea)
* (247481-001) (8 ea)
* (247348-001) (8 ea)
* (368224-002) (2 ea)
* (101517-067) (12 ea)
1 Chassis fan 432869-001
2 Heatsink with alcohol pad and factory-applied ther-
mal grease
432866-001
3 Fan duct 435097-001
4 Rear I/O panel 435528-001
*Mouse, PS2, scroll type 390937-001
*Mouse, USB, scroll type 390939-001
* Mouse, PS2, optical 417966-001
* Mouse, USB, optical 390938-001
* Battery, real-time clock 153099-001
5 Internal speaker 430129-001
* Second serial port, LP 432875-001
* Tower stand 436533-001
*Not shown
LP = Low profile
FH = Full height

HP Compaq dc5750 SFF Specifications

General

Chipset	ATI Radeon Xpress 1150
Memory	Up to 4 GB DDR2 SDRAM
Audio	Integrated High Definition audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Power Supply	240W
Form Factor	Small Form Factor (SFF)
Processor	AMD Athlon 64 X2, AMD Sempron
Storage	SATA Hard Drive
Optical Drive	DVD-ROM, DVD+/-RW
Expansion Slots	1 PCI, 1 PCI Express x16, 1 PCI Express x1
Ports	1 serial, 1 parallel, 1 VGA, audio in/out
Operating System	Windows XP Professional, Windows Vista
