System Overview
Figure 2-10 shows the rear view of the MT form factor.
NOTE:
[1] Switch not present on SKUs that feature auto-ranging power supply.

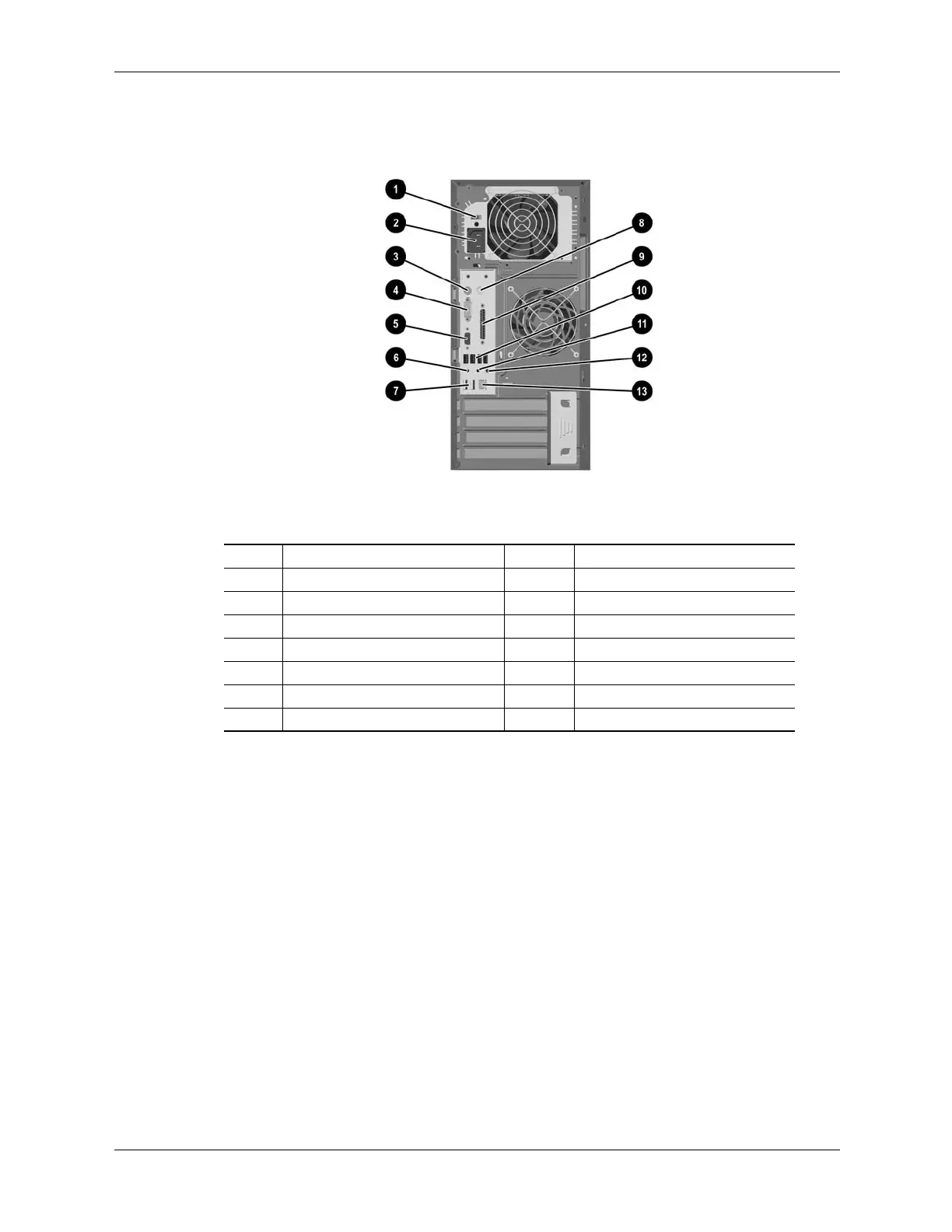

Figure 2-10. HP Compaq dx6100 MT, Rear View
Item Description Item Description
1 AC voltage select switch 8 Mouse connector (PS/2)
2 AC line connector Microphone In jack 9 Parallel port connctor (DB-25)
3 Keyboard connector (PS/2) 10 USB ports 1 - 4
4 Serial port connector (DB-9) 11 Line audio Out jack
5 VGA monitor connector (B-15) 12 Line audio In jack
6 Microphone In jack 13 NIC (LAN) connector (RJ-45)
7USB ports 5, 6 -- --

HP Compaq dc7100 USDT Specifications

General

Memory	Up to 4 GB DDR2 SDRAM
Graphics	Intel Graphics Media Accelerator 900
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Expansion Slots	1 low-profile PCI
Operating System	Windows XP Professional
Processor	Intel Pentium 4
Chipset	Intel 915G
Storage	40 GB
Optical Drive	DVD-ROM
Audio	Integrated
Ports	USB 2.0, serial, parallel, PS/2, VGA, audio
Power Supply	External power adapter
Form Factor	Ultra-slim desktop
