HP Compaq dc7100 USDT User Manual

Technical Reference Guide 361834-001 3-1
3
Processor/Memory Subsystem
3.1 Introduction
This chapter describes the processor/memory subsystem. These systems feature the Intel
Pentium 4 processor and the 915G chipset (Figure 3-1). These systems support PC2700 or
PC3200 DDR memory and come standard with PC3200 DIMMs installed.

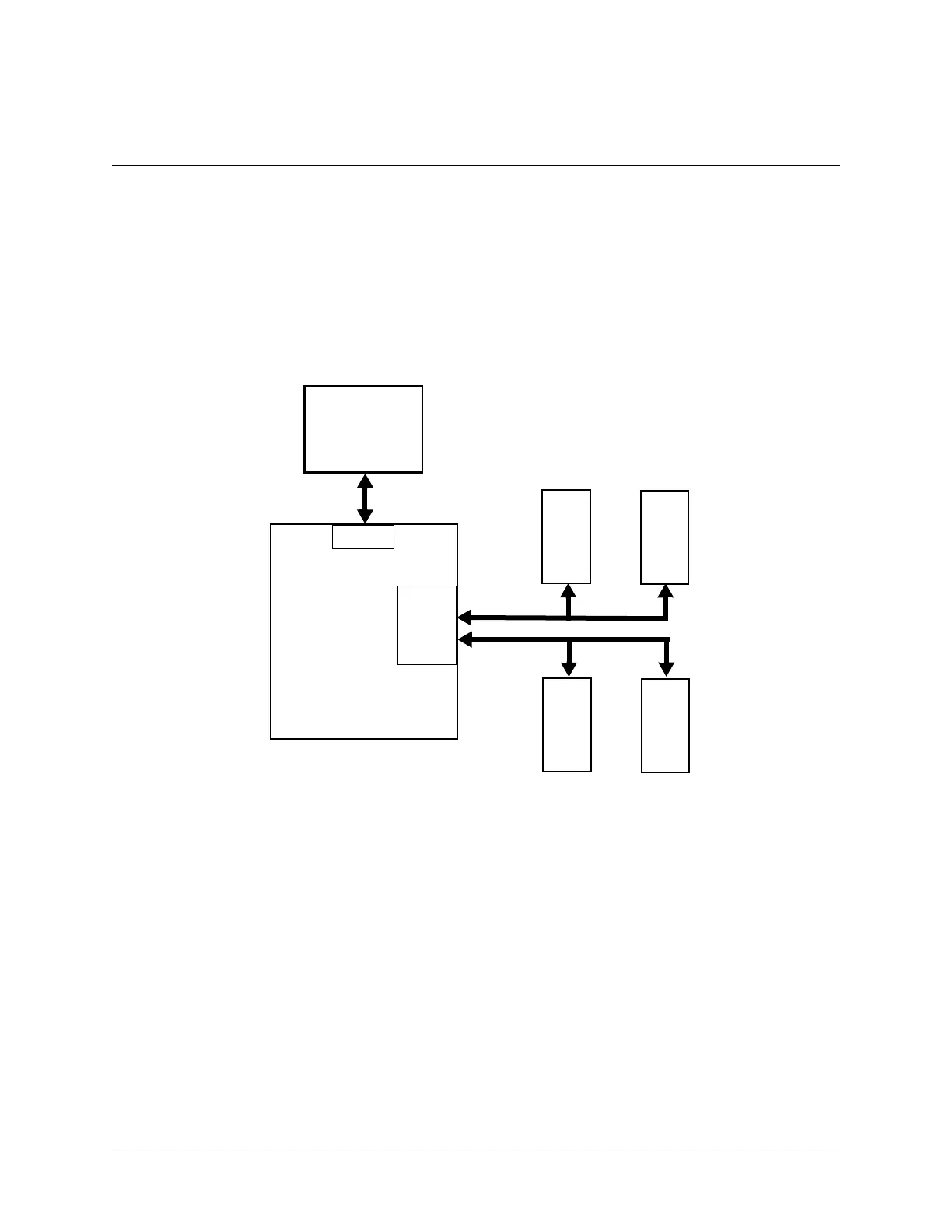

Figure 3-1. Processor/Memory Subsystem Architecture
This chapter includes the following topics:
■ Pentium 4 processor (3.2), page 3-2
■ Memory subsystem (3.3), page 3-4
Pentium 4
Processor
82915G
GMCH
Cntrl
SDRAM
XMM1
Ch A
DIMM
Ch A
DIMM
Ch B
DIMM
Ch B
DIMM
XMM3
XMM4
XMM2 [1]
FSB I/F
Note:
[1] SFF, ST, MT, and CMT models only.

HP Compaq dc7100 USDT Specifications

General

Memory	Up to 4 GB DDR2 SDRAM
Graphics	Intel Graphics Media Accelerator 900
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Expansion Slots	1 low-profile PCI
Operating System	Windows XP Professional
Processor	Intel Pentium 4
Chipset	Intel 915G
Storage	40 GB
Optical Drive	DVD-ROM
Audio	Integrated
Ports	USB 2.0, serial, parallel, PS/2, VGA, audio
Power Supply	External power adapter
Form Factor	Ultra-slim desktop
