HP Compaq dc7600 MT Hardware Reference Guide

C–4 www.hp.com Hardware Reference Guide

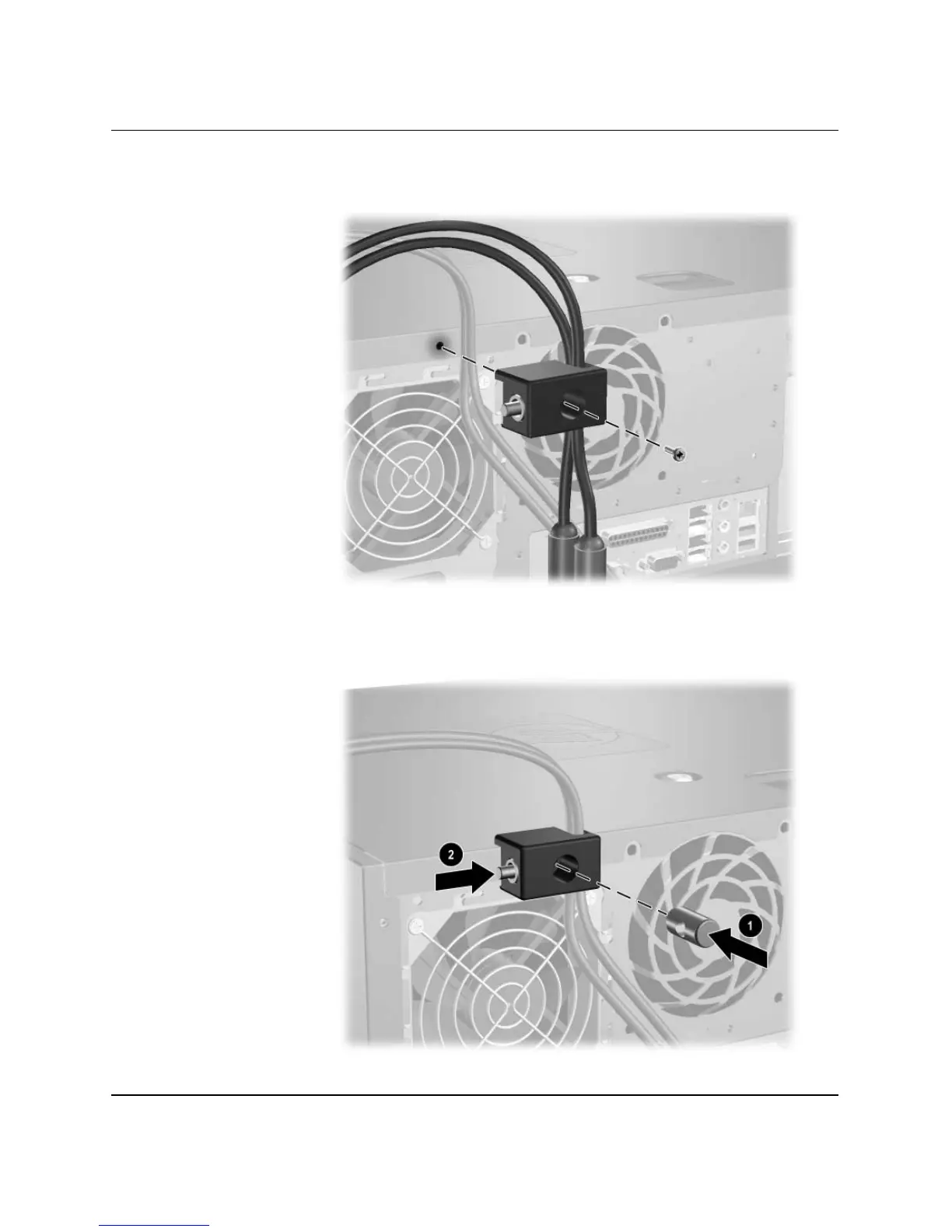

Security Lock Provisions
2. Screw the lock to the chassis using the screw provided.
3. Insert the plug into the lock 1 and push the button in 2 to engage
the lock. Use the key provided to disengage the lock.

HP Compaq dc7600 MT Specifications

General

Memory	Up to 4 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 2 PCI
Form Factor	Microtower
Processor	Intel Pentium 4 or Intel Celeron D
Chipset	Intel 945G Express
Hard Drive	40 GB to 160GB SATA
Optical Drive	DVD-ROM, DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 950
Networking	Integrated 10/100/1000 Ethernet
Ports	Serial, parallel, VGA, audio in/out
Operating System	Windows XP Professional, Windows XP Home
USB Ports	8 USB 2.0 (2 front, 6 rear)
