HP Compaq dc7600 MT Hardware Reference Guide

Hardware Reference Guide www.hp.com 1–3
Product Features

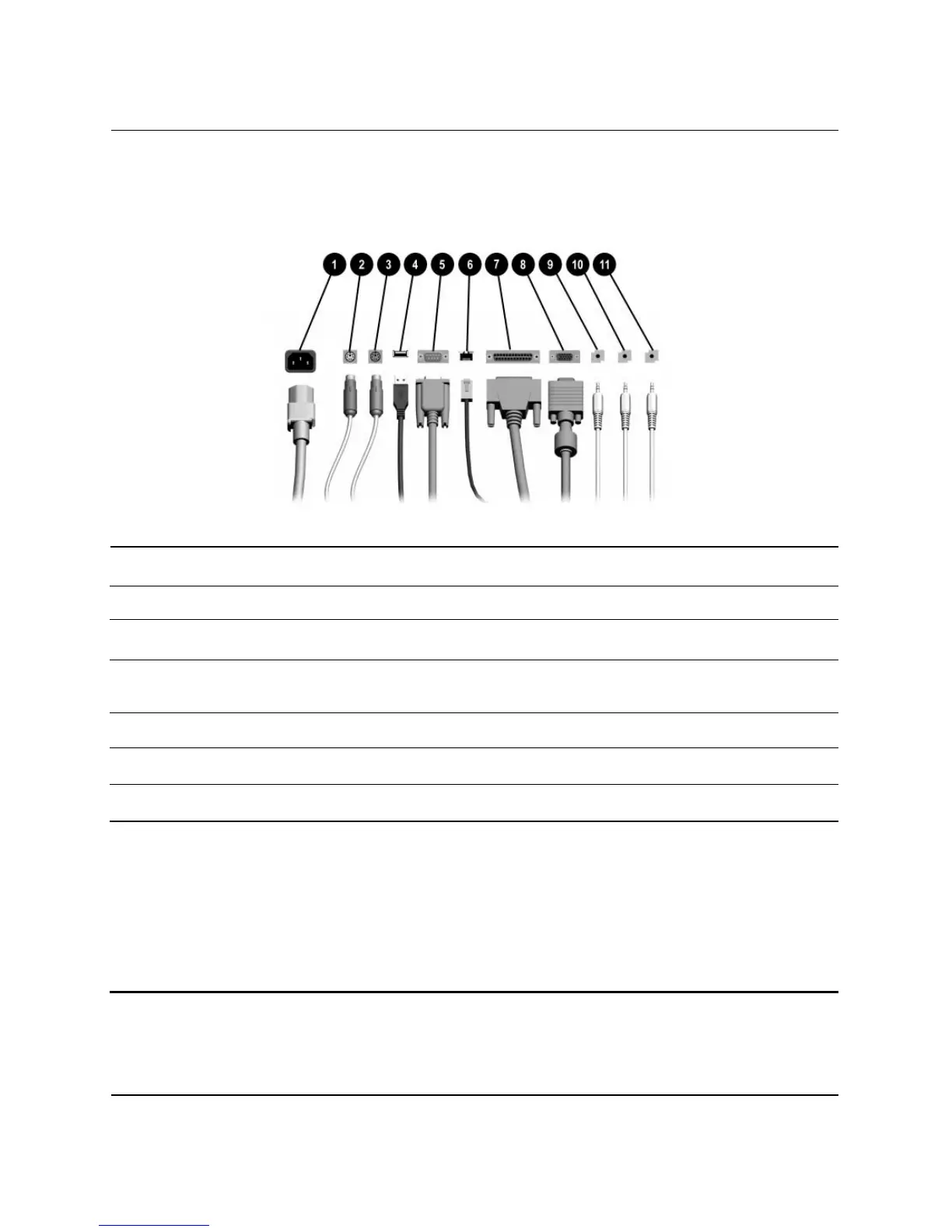

Rear Panel Components
Rear Panel Components
1 Power Cord Connector 7
l
Parallel Connector
2
b
PS/2 Mouse Connector (green) 8
c
Monitor Connector
3
a
PS/2 Keyboard Connector (purple) 9
k
Line-Out Connector for powered
audio devices (green)
4
o
Universal Serial Bus (USB) -
j
Line-In Audio Connector (blue)
5
m
Serial Connector q
g
Microphone Connector (pink)
6
n
RJ-45 Network Connector
✎
Arrangement and number of connectors may vary by model.
The monitor connector on the system board is inactive when a PCI Express graphics card is
installed in the computer.
If an ADD2 graphics card is installed, the connectors on the card and the system board may
be used at the same time. Some settings may need to be changed in Computer Setup to use
both connectors. For information about Boot Order, refer to the Computer Setup (F10) Utility
Guide on the Documentation and Diagnostics CD.

HP Compaq dc7600 MT Specifications

General

Memory	Up to 4 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 2 PCI
Form Factor	Microtower
Processor	Intel Pentium 4 or Intel Celeron D
Chipset	Intel 945G Express
Hard Drive	40 GB to 160GB SATA
Optical Drive	DVD-ROM, DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 950
Networking	Integrated 10/100/1000 Ethernet
Ports	Serial, parallel, VGA, audio in/out
Operating System	Windows XP Professional, Windows XP Home
USB Ports	8 USB 2.0 (2 front, 6 rear)
