Installing the New Optical Drive
1. Align the optical drive with the opening in the front bezel. Make sure the back of the optical drive
is being inserted first and the release latch is on the inner side of the drive.

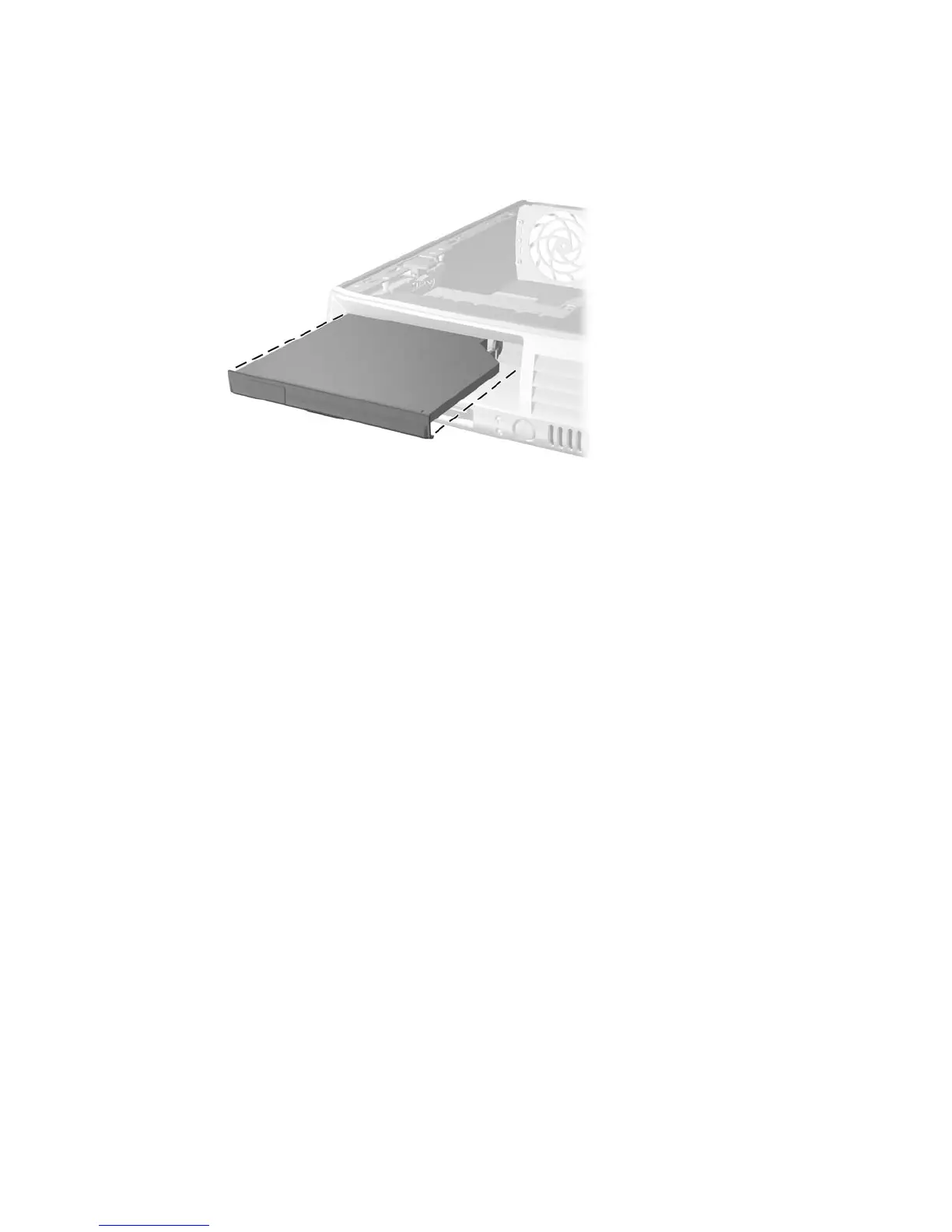

Figure 2-19 Aligning the Optical Drive
2. Slide the optical drive into the computer until it locks.
3. Attach the optical drive cable to the back of the drive.
4. Replace the access panel.
5. If the computer was on a stand, replace the stand.
6. Reconnect the power cord and turn on the computer.
7. Lock any security devices that were disengaged when the computer cover or access panel was
removed.
28 Chapter 2 Hardware Upgrades ENWW
