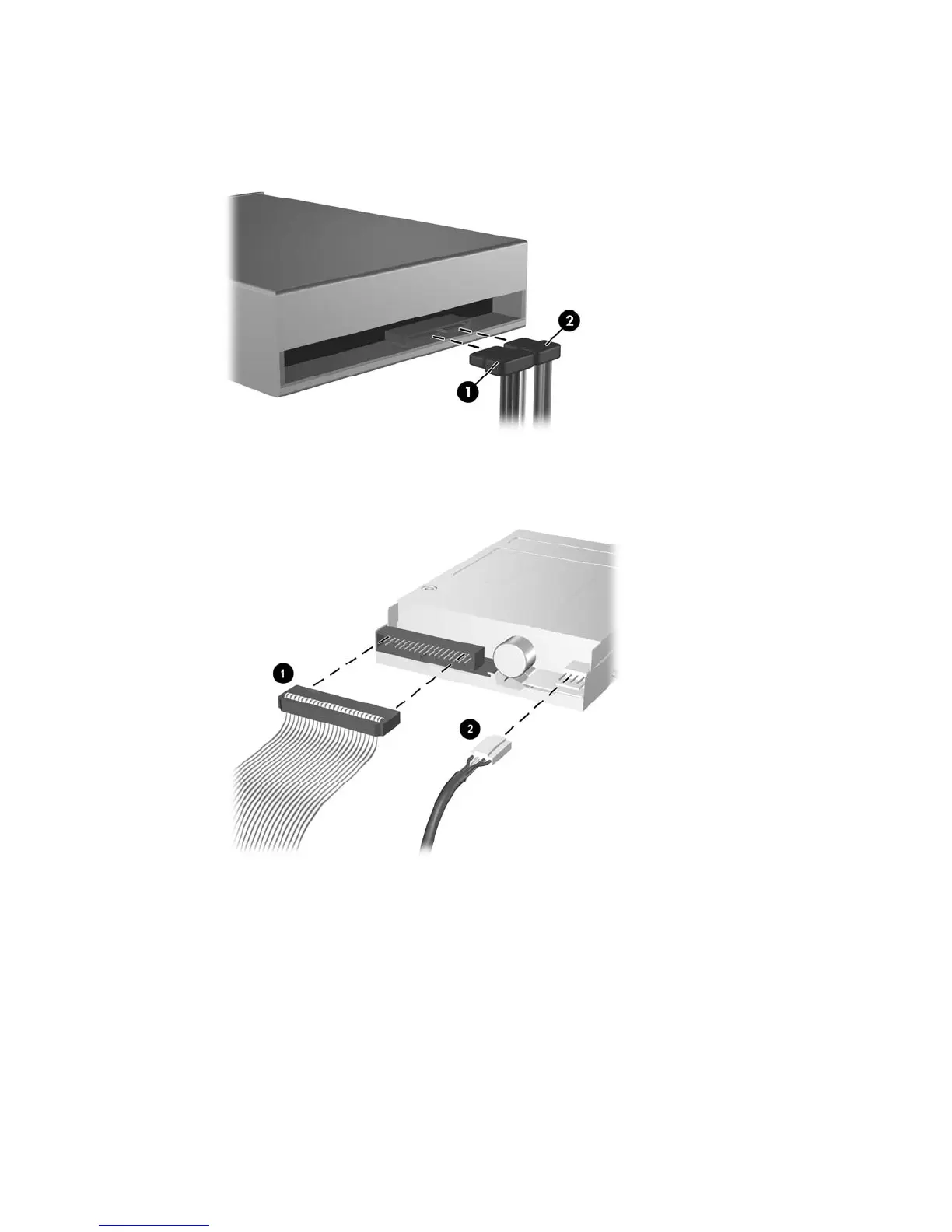

3. Connect the power and data cables to the drive as indicated in the following illustrations.
a. If you are installing an optical drive, connect the power cable (1) and data cable (2) to the back
of the drive.
Figure 2-22 Connecting the Optical Drive Cables
b. If you are installing a diskette drive, connect the data cable (1) and power cable (2) to the back
of the drive.
Figure 2-23 Connecting the Diskette Drive Cables
32 Chapter 2 Hardware Upgrades ENWW
