Connecting USB Devices
1. Connect one end of the provided USB cable to the USB hub upstream connector on the rear panel
of the monitor, and the other end to the USB connector on the computer.
2. Connect USB devices to the two USB downstream connectors on the monitor.

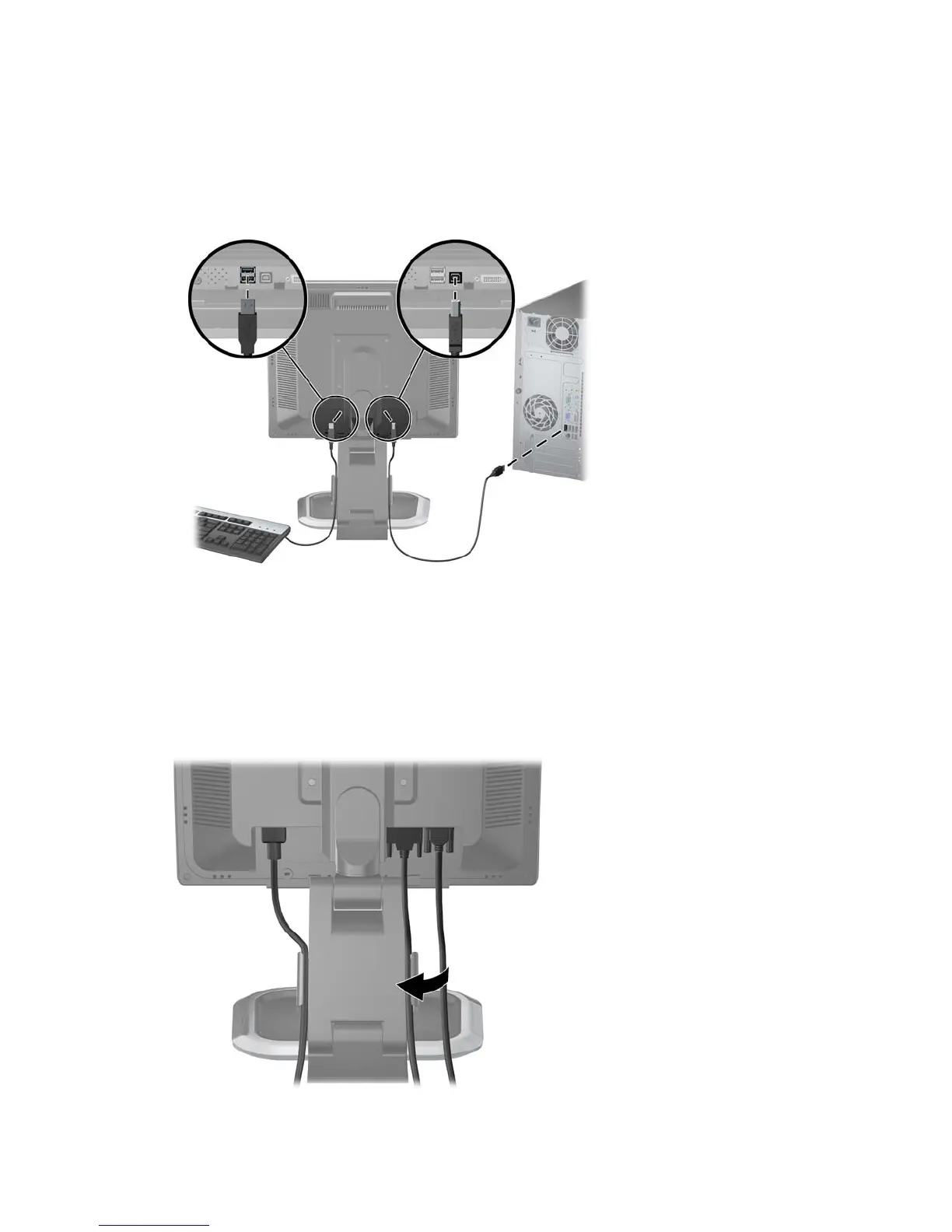

Figure 3-5 Connecting USB Devices
Cable Management
Use the cable management feature to secure and hide your cables when viewed from the front.
After connecting the cables to the monitor models, place the cables through the cable management
channels on the sides of the monitor base.
Figure 3-6 Using the Cable Management Feature
8 Chapter 3 Setting Up the Monitor ENWW
