HP Compaq LA2205wg User Manual

Connecting the Cables
1. Place the monitor in a convenient, well-ventilated location near the computer.
NOTE: Before connecting the cables, route them through the opening on the monitor's
pedestal.
2. Connect a VGA signal cable, DVI-D signal cable, or DisplayPort signal cable.
NOTE: The monitor is capable of supporting either analog or digital input. The video mode is
determined by the video cable used. The monitor will automatically determine which inputs have
valid video signals. The inputs can be selected by pressing the +/Source button on the front
panel or through the On-Screen Display (OSD) feature by pressing the Menu button.
● For analog operation, use the VGA signal cable provided. Connect the VGA signal cable to
the VGA connector on the rear of the monitor and the other end to the VGA connector on
the computer.
●
For DVI digital operation, use the DVI-D signal cable provided. Connect the DVI-D signal
cable to the DVI connector on the rear of the monitor and the other end to the DVI
connector on the computer.
● For DisplayPort digital operation, use a DisplayPort signal cable (not provided). Connect
the DisplayPort signal cable to the DisplayPort connector on the rear of the monitor and the
other end to the DisplayPort connector on the computer.
3. Connect one end of the provided USB cable to the USB hub connector on the rear panel of the
computer, and the other end to the upstream USB connector on the monitor.
4. Connect one end of the power cable to the AC power connector on the back of the monitor, and
the other end to an electrical wall outlet.

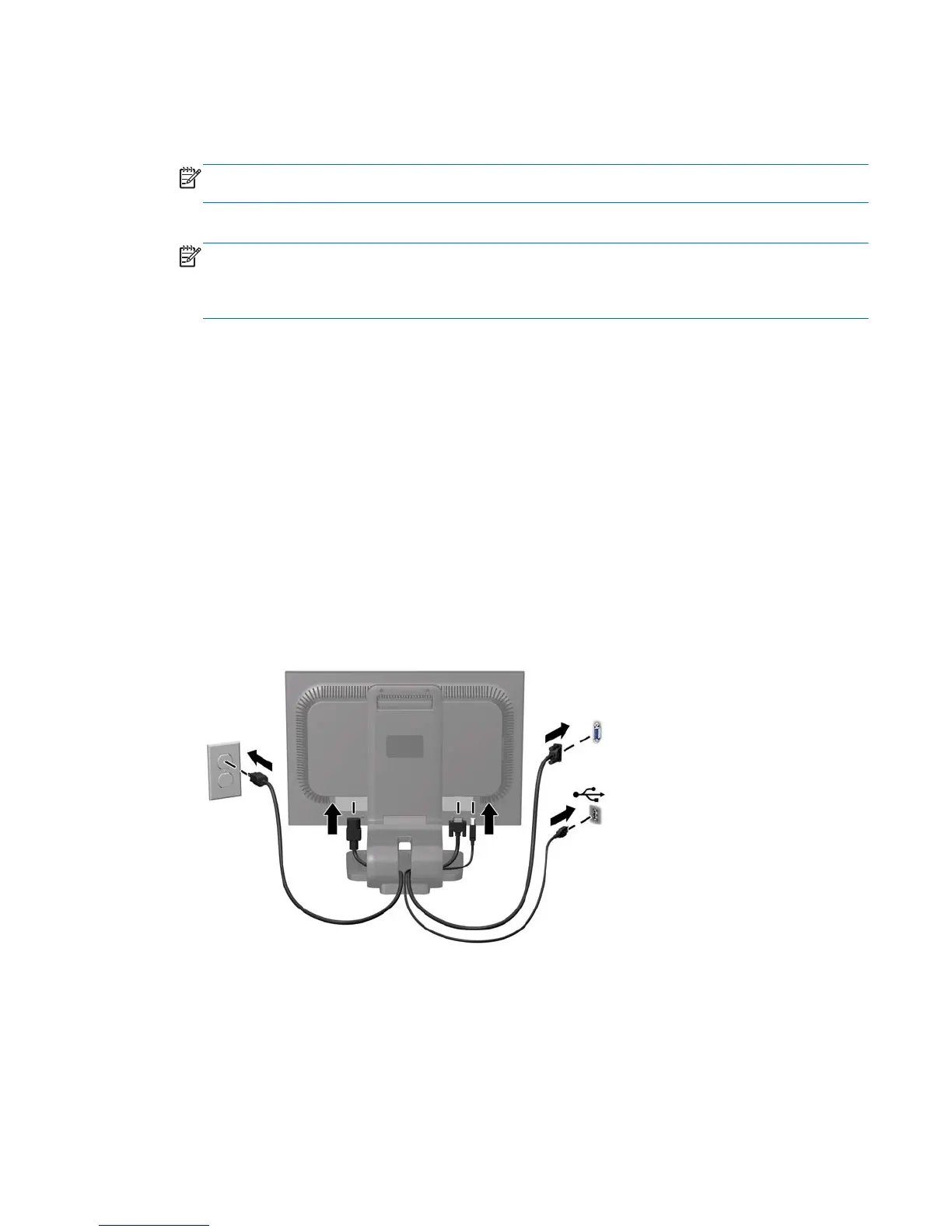

Figure 2-3 Connecting the Cables
Connecting the Cables 5

HP Compaq LA2205wg Specifications

General

3D	No
Pixel pitch	0.282 x 0.282 mm
Display diagonal	22 \
Separate H/V sync	Yes
Display resolution	1680 x 1050 pixels
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
Viewing angle, horizontal	160 °
Digital vertical frequency	50 - 76 Hz
Digital horizontal frequency	24 - 83 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
USB hub version	2.0
DVI-I ports quantity	0
USB Type-A downstream ports quantity	2
LED indicators	Power
Tilt angle range	-5 - 30 °
Height adjustment	120 mm
Panel mounting interface	- mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR
AC input voltage	100 - 240 V
Power consumption (off)	0.5 W
Power consumption (standby)	1 W
Power consumption (typical)	33 W
Power requirements	100 - 240V, 47/63Hz
Sync input impedance	75 Ω
Operating altitude	0 - 5000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	231 mm
Package width	591 mm
Package height	492 mm
Certification	EPEAT Gold, RoHS
Country of origin	China
Market positioning	Business
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	254.9 mm
Width (with stand)	511.2 mm
Height (with stand)	373.5 mm
Depth (without stand)	62 mm
Width (without stand)	511 mm
Height (without stand)	334 mm
Weight (without stand)	6820 g
