HP Compaq Mini 110 User Manual

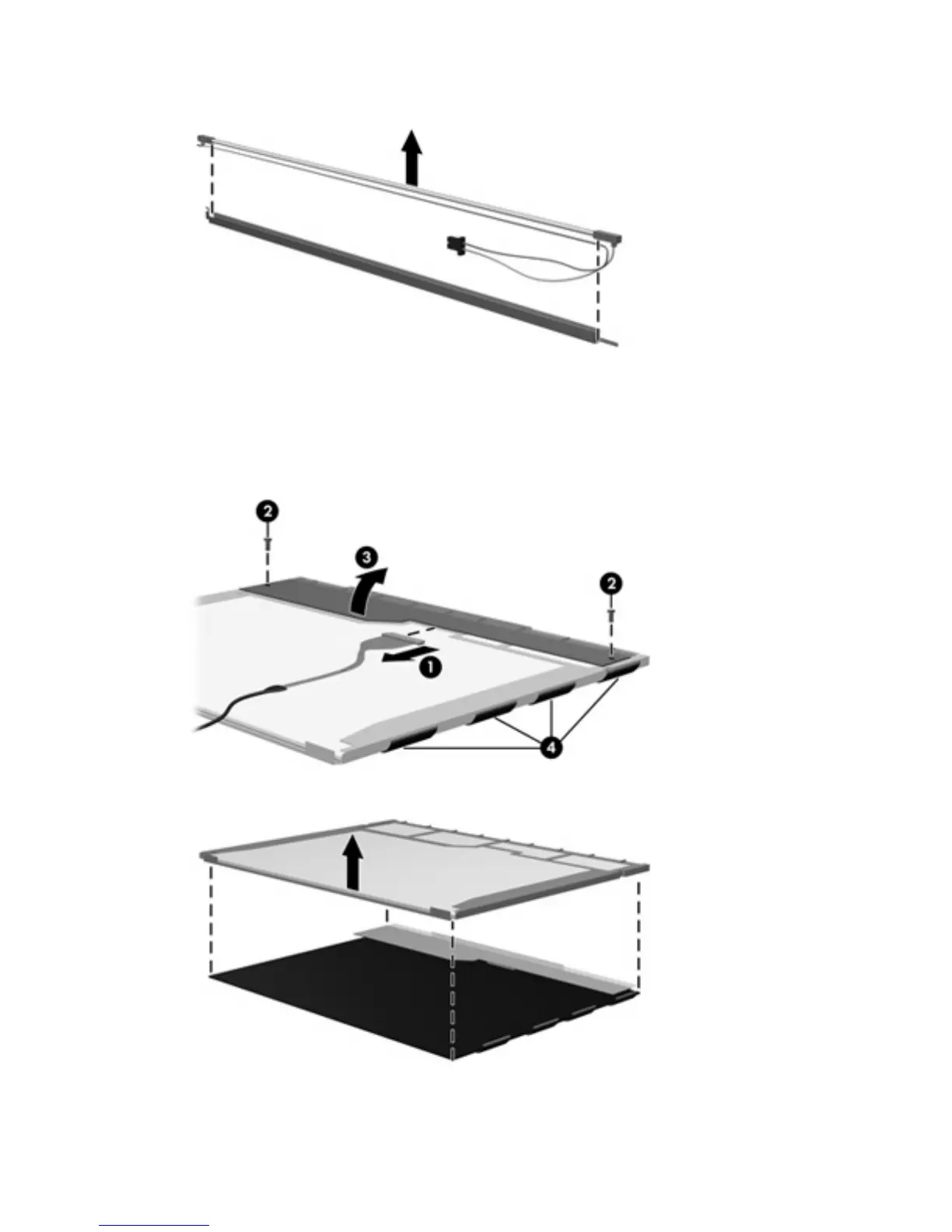

18. Remove the backlight from the backlight frame.
19. Disconnect the display panel cable (1) from the LCD panel.
20. Remove the screws (2) that secure the LCD panel to the display rear panel.
21. Release the LCD panel (3) from the display rear panel.
22. Release the tape (4) that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
140 Chapter 11 Recycling

HP Compaq Mini 110 Specifications

General

Storage	160 GB HDD
Graphics	Intel GMA 950
Processor	Intel Atom N270 / 1.6 GHz
RAM	1 GB DDR2
Operating System	Windows XP Home
Battery	3-cell Lithium-ion
Wireless	802.11b/g Wi-Fi, Bluetooth (optional)
Ports	3 x USB 2.0, 1 x VGA
Display	10.1 inch WSVGA LED backlight
