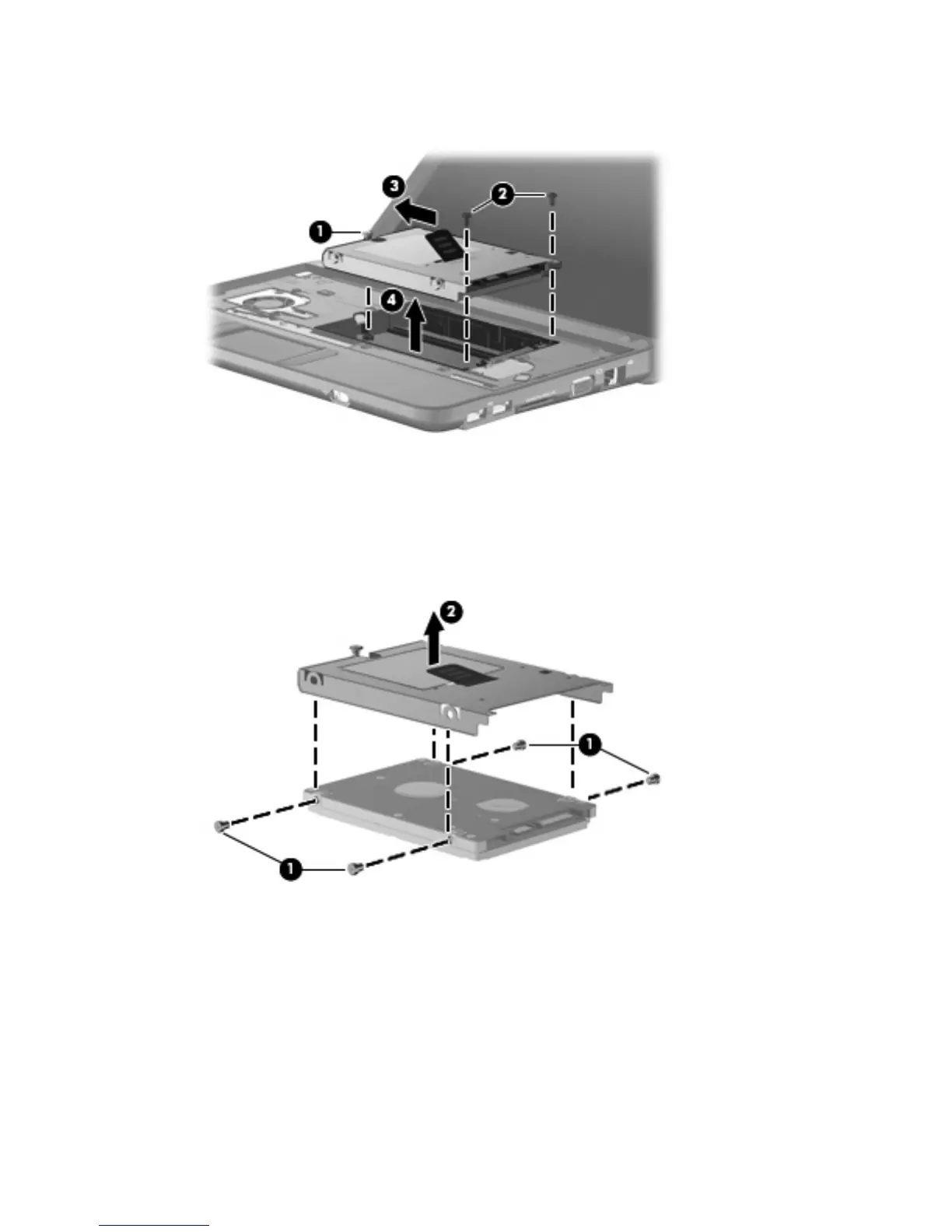

2. Use the Mylar tab to slide the assembly to the left (3) to disconnect it, and remove the
assembly (4).
Continue with one of the following sections for hard drive or solid-state drive replacement.
Hard drive
1. Remove the 4 Phillips SP3.0×4.0 screws (1) that secure the hard drive bracket to the hard drive.
2. Using the Mylar tab, lift the bracket (2) away from the hard drive.
Reverse this procedure to install a hard drive.
Solid-state drive
To remove the solid-state drive:
1. Remove the 4 Phillips SP2.0×3.0 screws (1) that secure the solid-state drive bracket to the solid-
state drive.
Component replacement procedures 55
