Removal and Replacement Procedures
Maintenance and Service Guide 5–25
5. Turn the notebook display-side up with front toward you.
6. Open the notebook as far as possible.
7. Disconnect the LED board cable 1 from the system board.
8. Insert a flat blade driver into the four notches 2 on the front
edge of the switch cover and lift up 3 until the cover
disengages from the notebook.
9. Remove the switch cover.

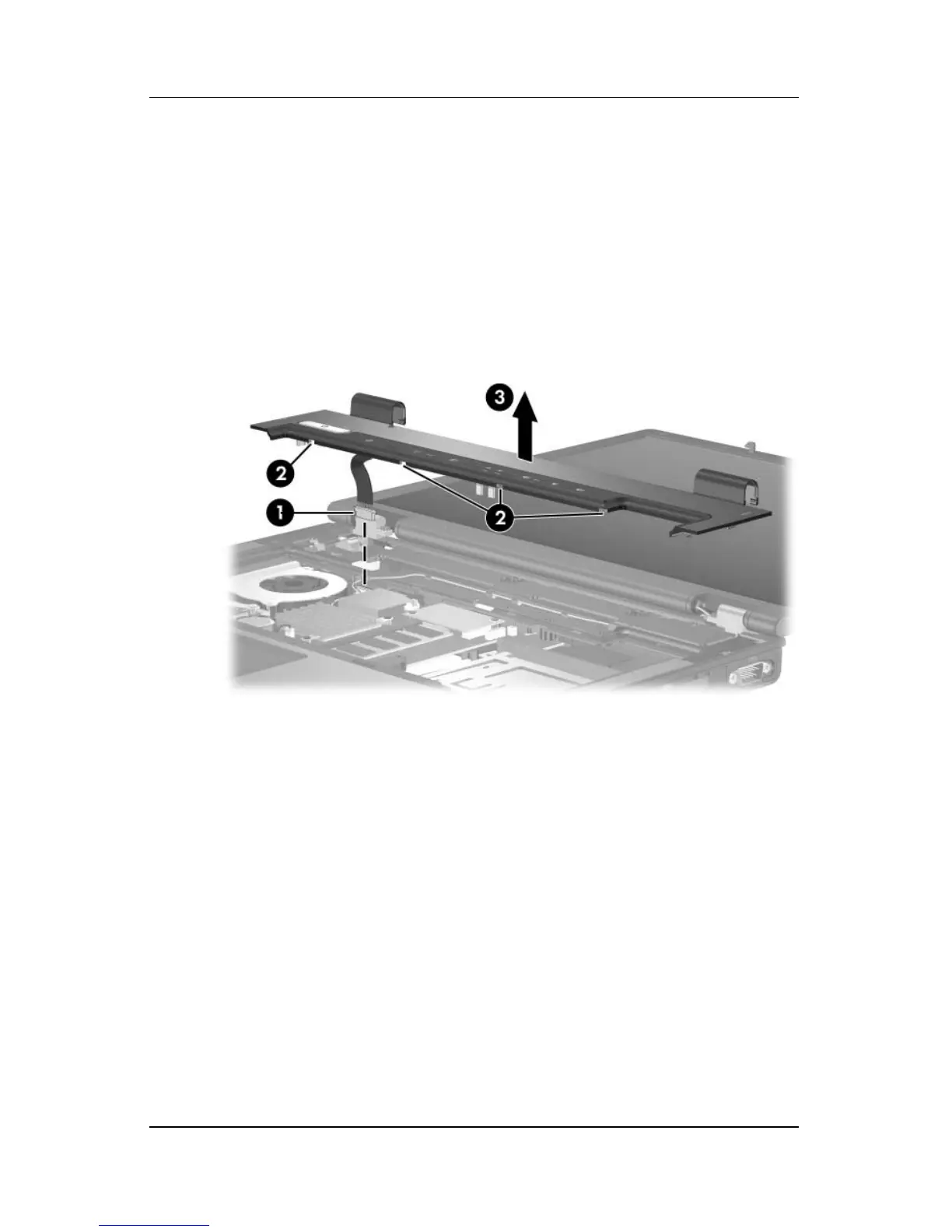

Removing the Switch Cover
Reverse the above procedure to install the switch cover.
