Removal and Replacement Procedures
Maintenance and Service Guide 5–47

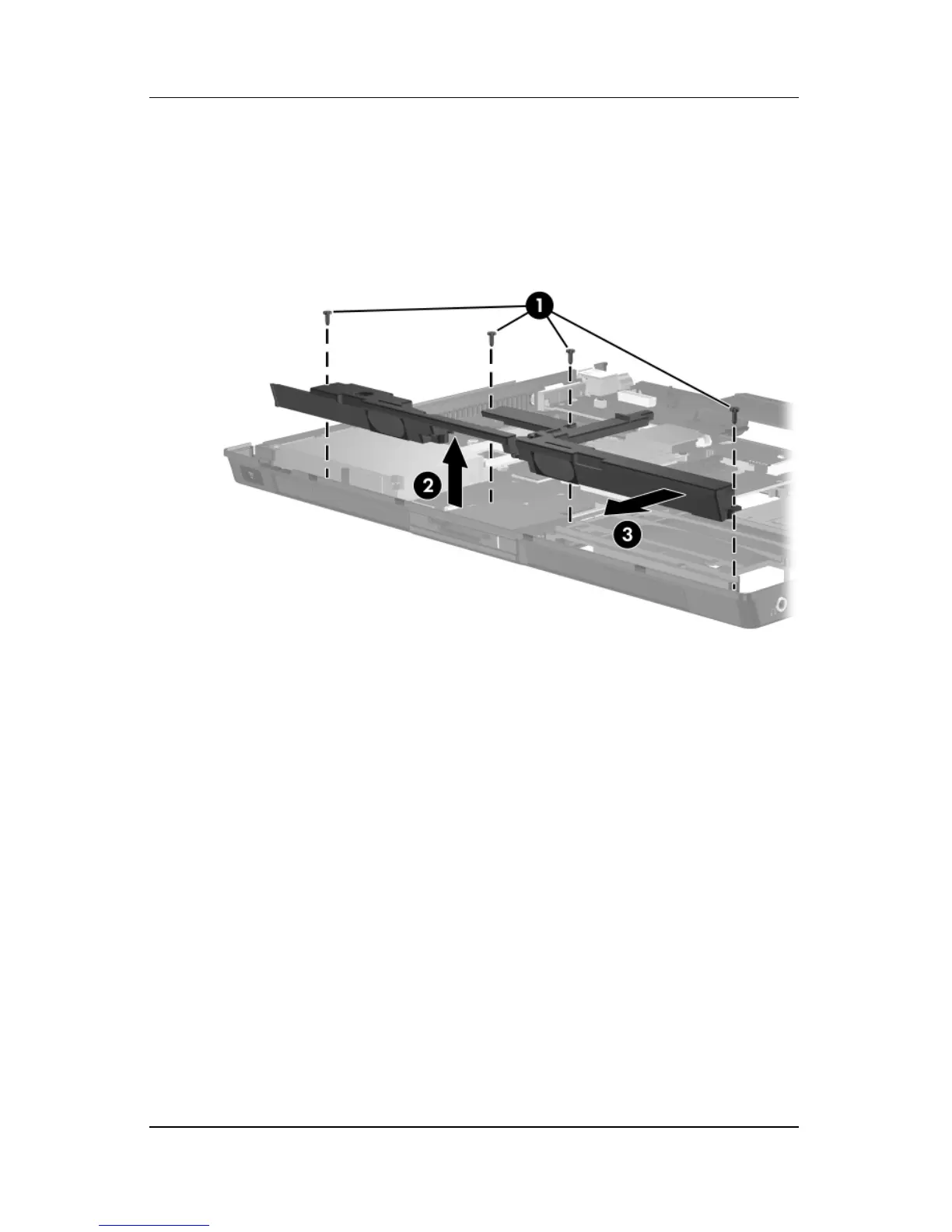

3. Remove the 4 T8M2.0×4.0 screws 1 that secure the speaker
to the notebook.
4. Lift the speaker up 2 until it clears the system board.
5. Slide the speaker toward you 3 and remove it.
Removing the Speaker
Reverse the above procedure to install the speaker.
