6–8 Maintenance and Service Guide
Removal and Replacement Procedures

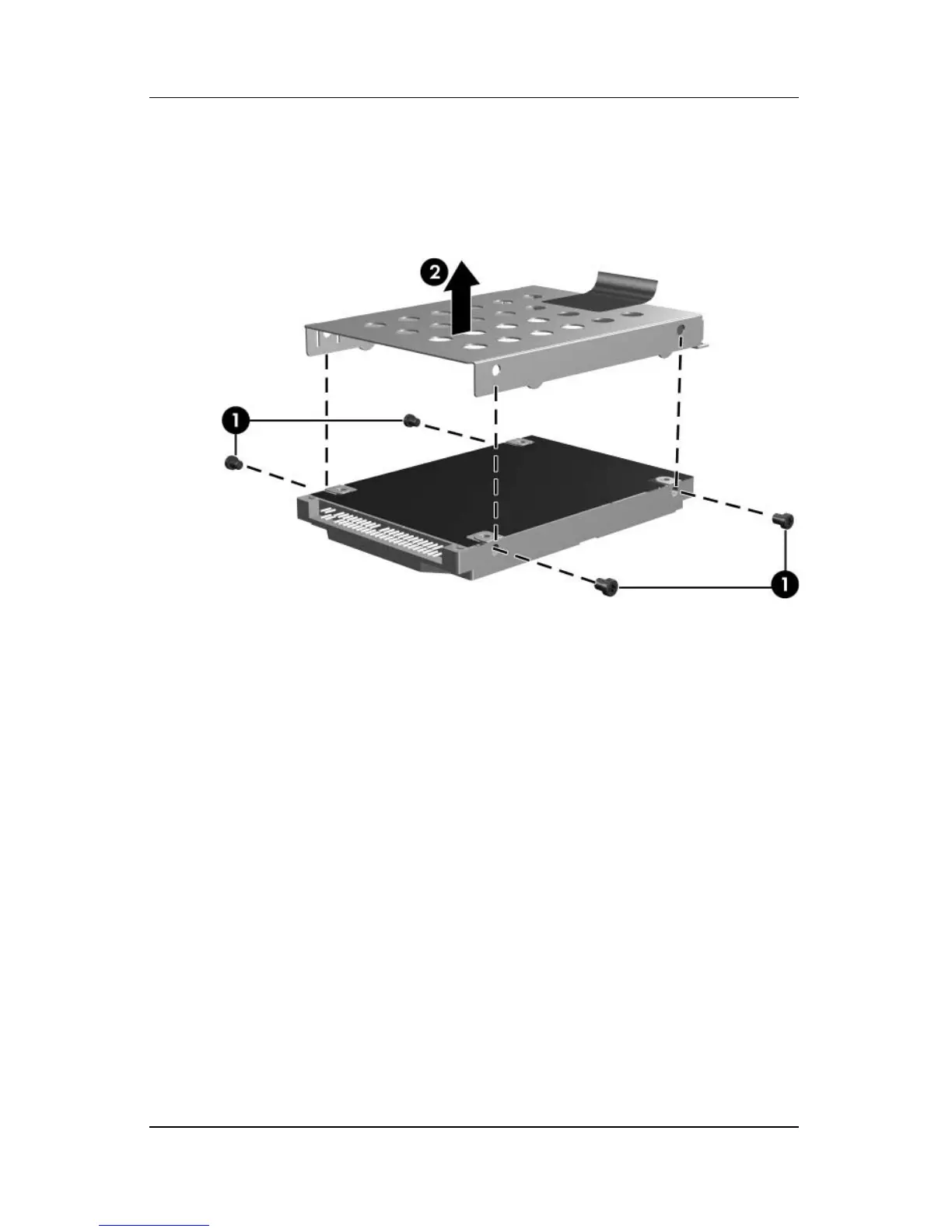

7. Remove the 4 Phillips PM3.0×5.0 hard drive frame screws 1
from each side of the hard drive.
8. Lift the frame straight up 2 to remove if from the hard drive.
Removing the Hard Drive Frame
Reverse the above procedure to reassemble and install the
hard drive.
