Removal and Replacement Procedures
Maintenance and Service Guide 6–33
4. Release the ZIF connector to which the LED board cable is
attached and disconnect the cable 1.
5. Remove the Torx T8M2.5×4.0 screw 2 that secures the
LED board to the notebook.
6. Remove the LED board 3.

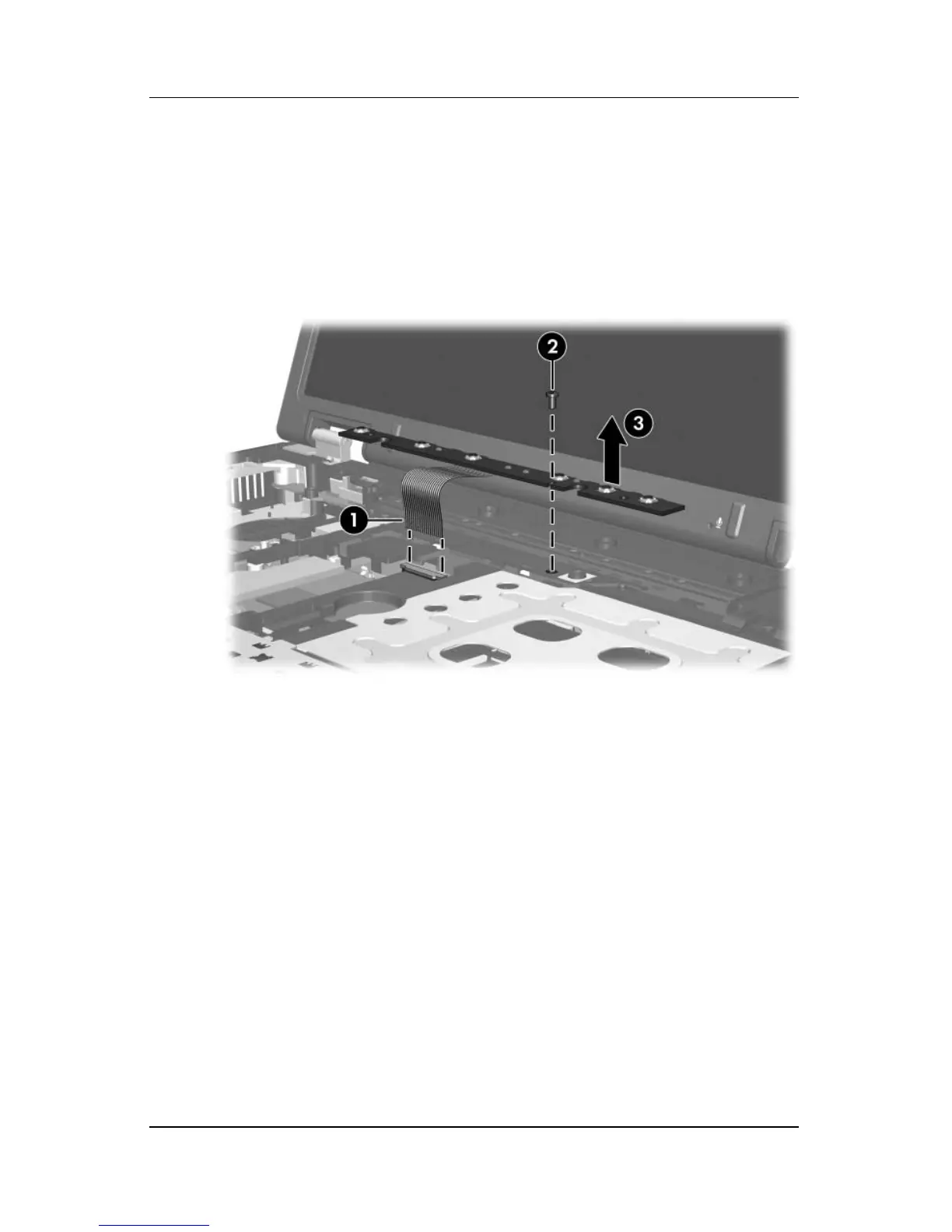

Removing the LED Board
Reverse the above procedure to install the LED board.
