Removal and Replacement Procedures
Maintenance and Service Guide 6–39
10. Disconnect the display cable 1 from the system board.
Ä
CAUTION: Support the display assembly when removing the following
screws. Failure to support the display assembly can result in damage to
the display assembly and other notebook components.
11. Remove the 2 Torx T8M2.5×7.0 screws 2 that secure the
display assembly to the notebook.
12. Lift the display assembly straight up and remove it 3.

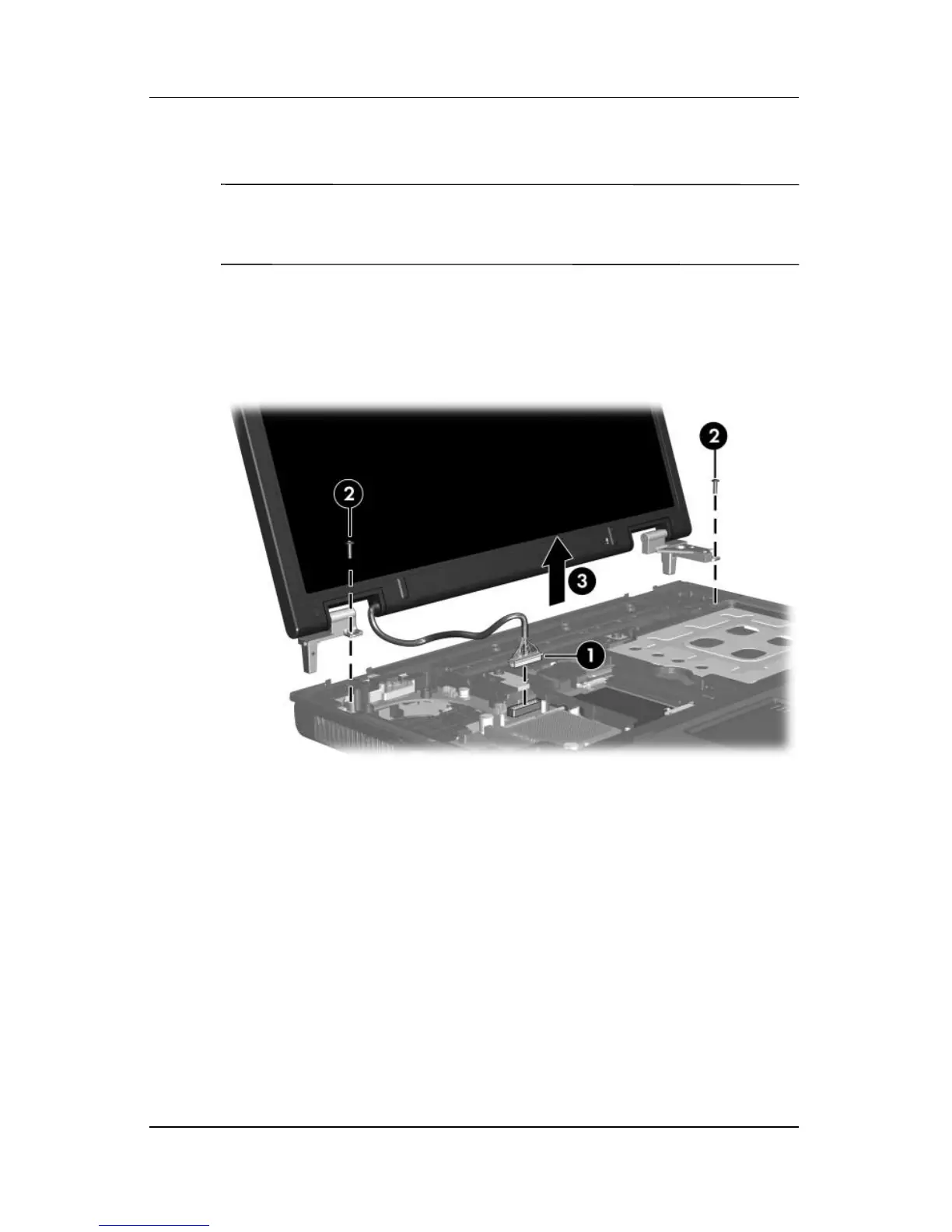

Removing the Display Assembly
Reverse the above procedure to install the display assembly.
