Removal and Replacement Procedures
Maintenance and Service Guide 6–49

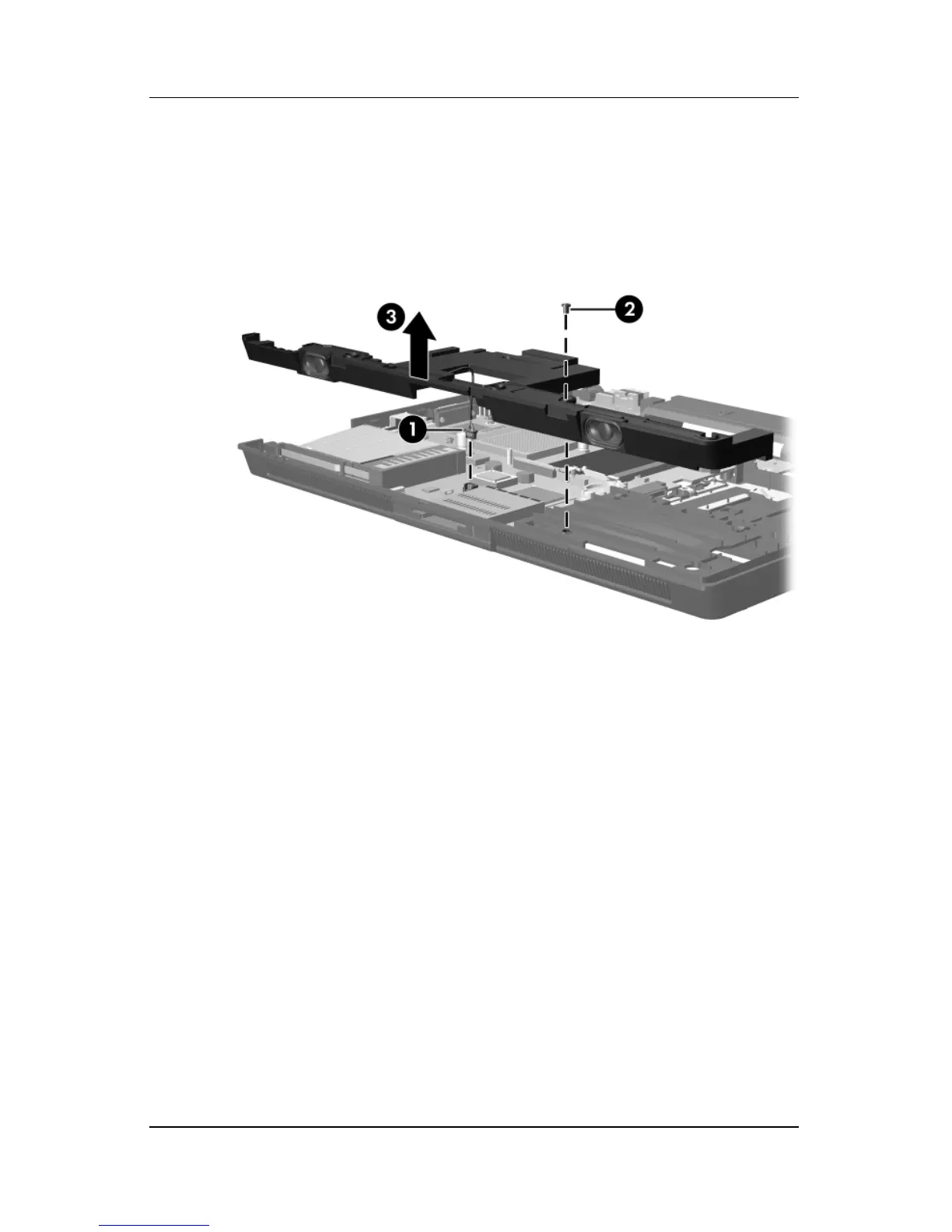

2. Disconnect the speaker cable 1 from the system board.
3. Remove the Torx T8M2.5×4.0 screw 2 that secures the
speaker to the notebook.
4. Lift the speaker up 3 until it clears the system board.
Removing the Speaker
Reverse the above procedure to install the speaker.
