16. Tighten the captive screw to secure the hard drive cage in place.

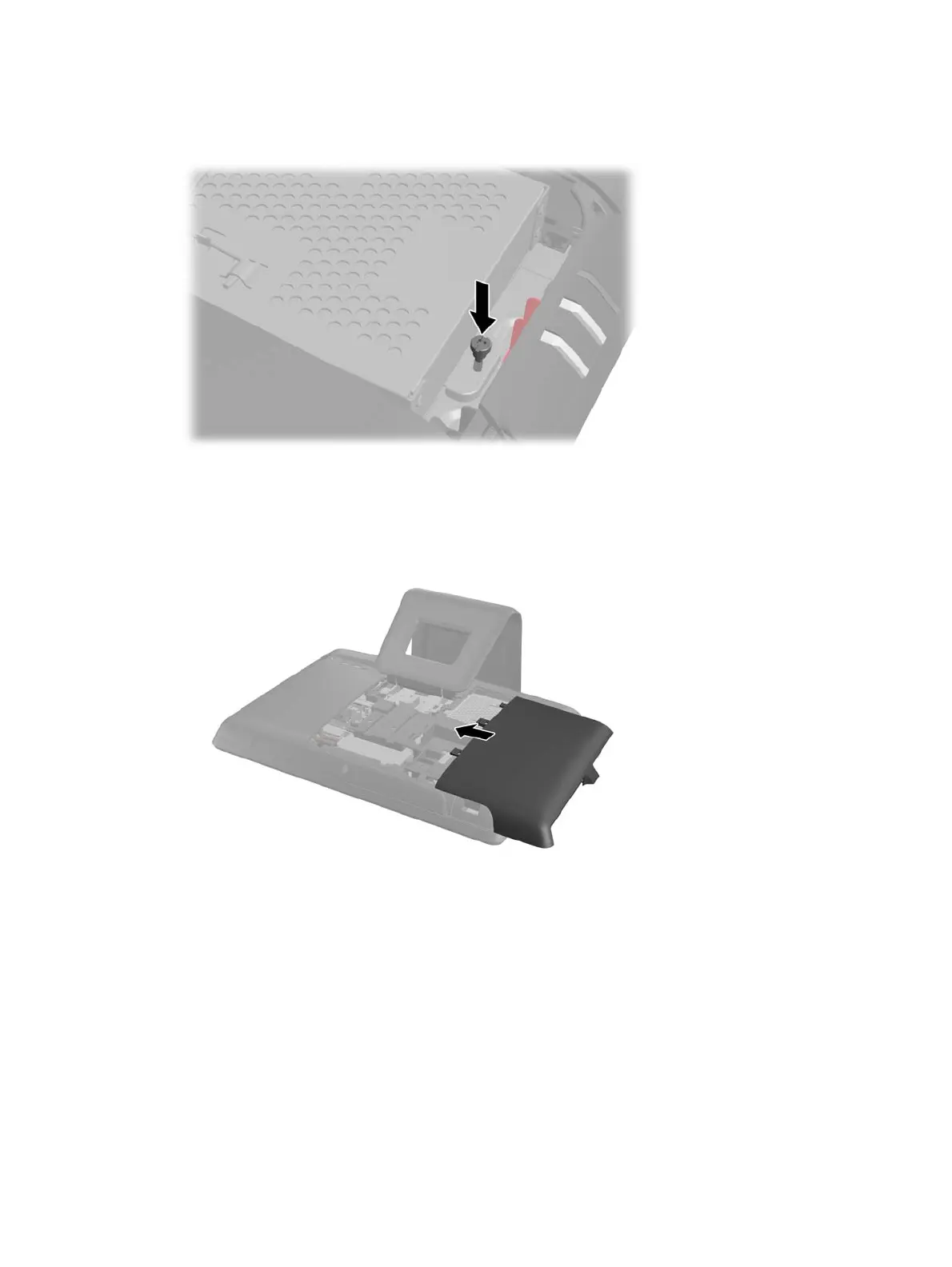

Figure 2-32 Tightening the Hard Drive Security Screw
17. Place the drive access panel on the rear of the computer so that the edge of the panel is slightly
hanging off the edge of the computer and slide the panel toward the center of the computer until it
snaps in place.
Figure 2-33 Replacing the Drive Access Panel
18. Rotate the drive panel latch up and close it to secure the drive access panel.
26 Chapter 2 Hardware Repair and Upgrade
