NOTE: If you are replacing the primary hard drive, you must remove the four silver and blue
6-32 isolation mounting screws from the old hard drive and install them in the new hard drive.

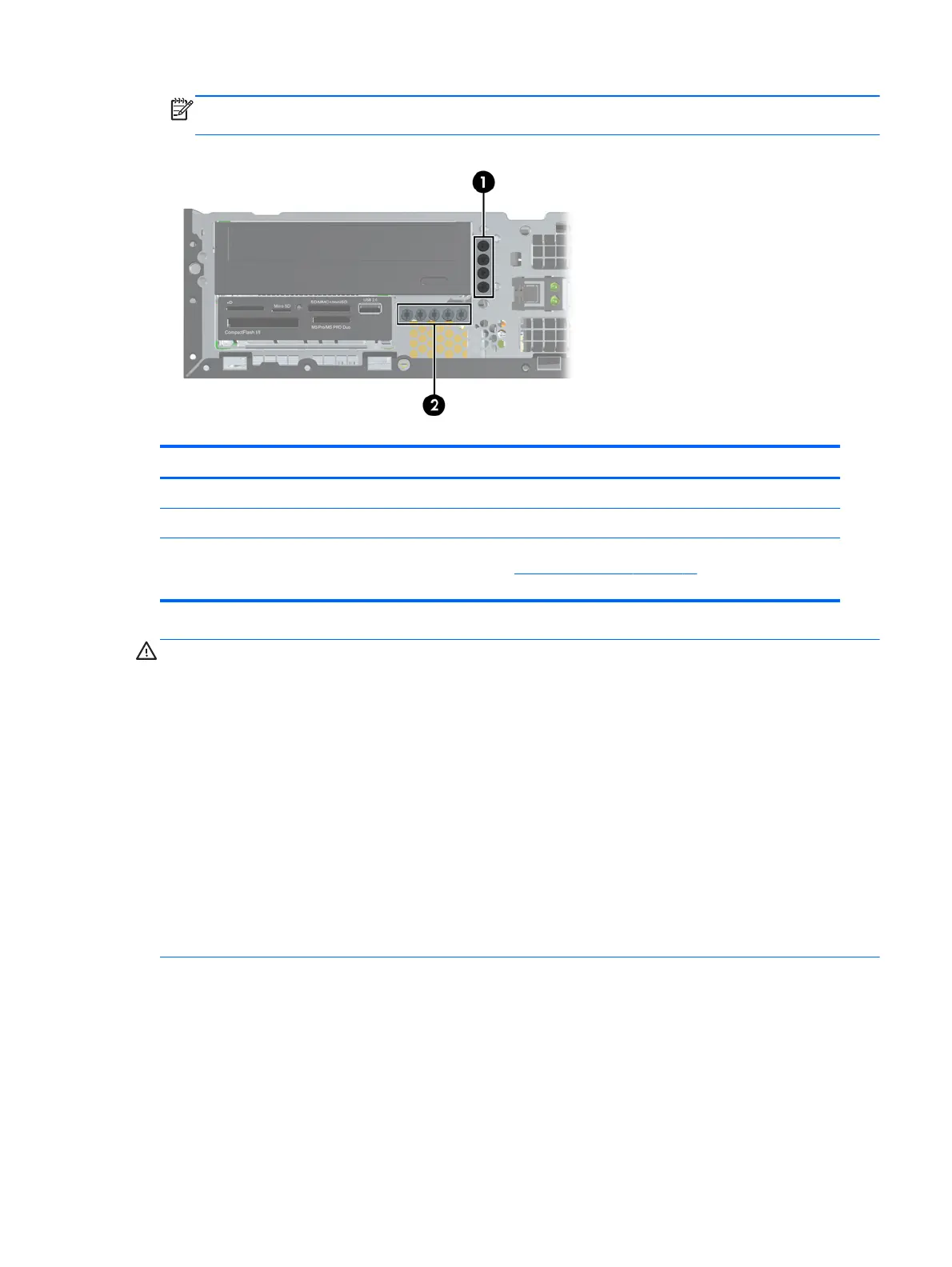

Figure 7-16 Extra Mounting Screw Locations
Table 7-3 Extra Mounting Screws
No. Mounting Screw Device
1 Black M3 Metric Screws All Drives (except hard drives)
2 Silver 6-32 Standard Screws Secondary Hard Drive (in systems supporting two hard drives)
There are a total of five extra silver 6-32 standard screws. Four are used as mounting screws for a secondary hard
drive (not supported). The fifth is used for bezel security (see
Front Bezel Security on page 99 for more
information).
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the
computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby
mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and
label the package “Fragile: Handle With Care.”
Drives 67
