Baffle
Description Spare part number
Baffle 636921-001
The baffle sits between the front fan and the heat sink.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 48).
2. Remove the access panel (
Computer Access Panel on page 50).
3. Remove the cables from the holder on the side of the baffle.
4. Lift the baffle straight up out of the chassis.

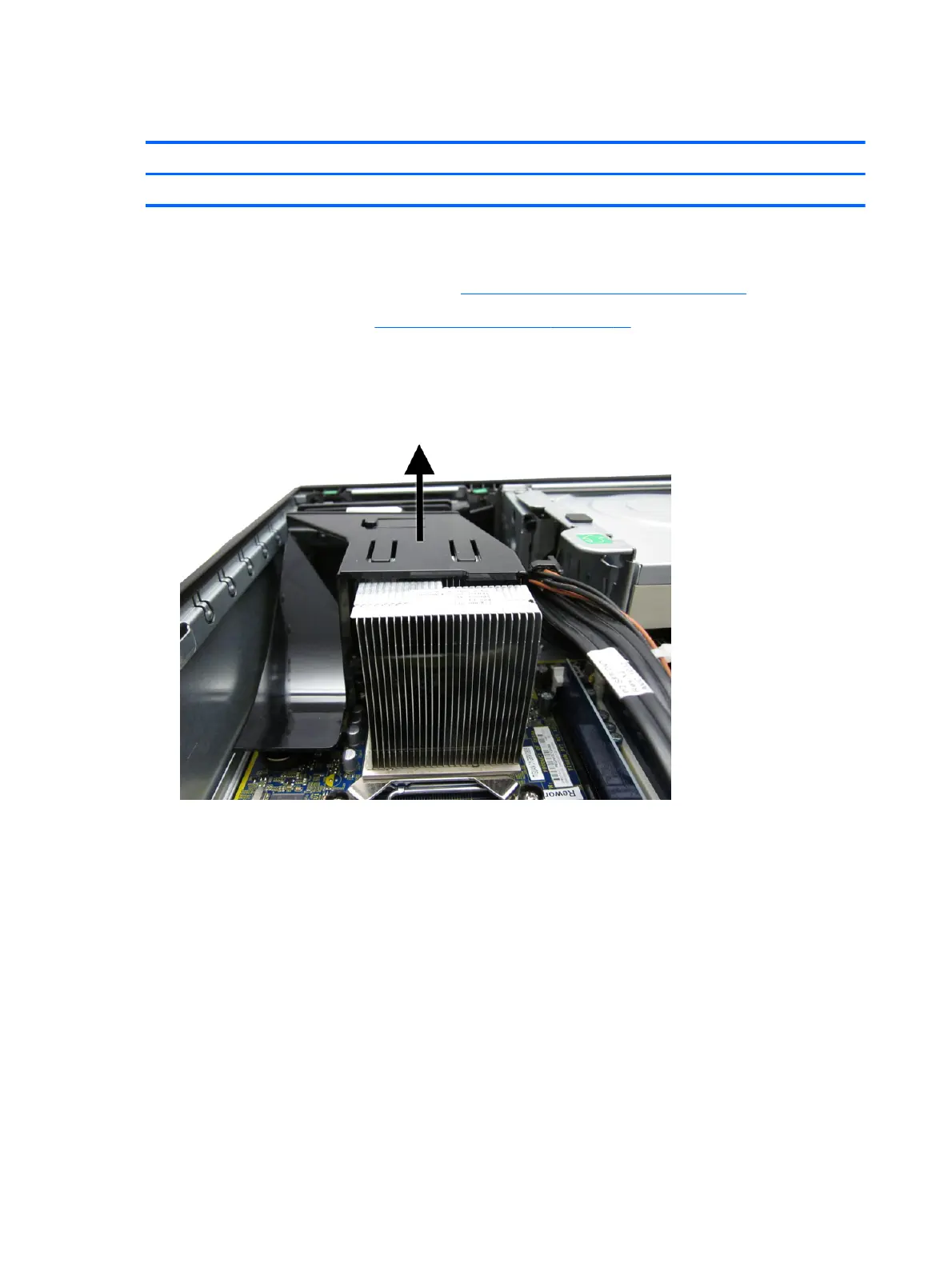

Figure 7-41 Removing the baffle
To install the baffle, reverse the removal procedure.
