7. Lift the speaker from the inside of the chassis to remove it (2).

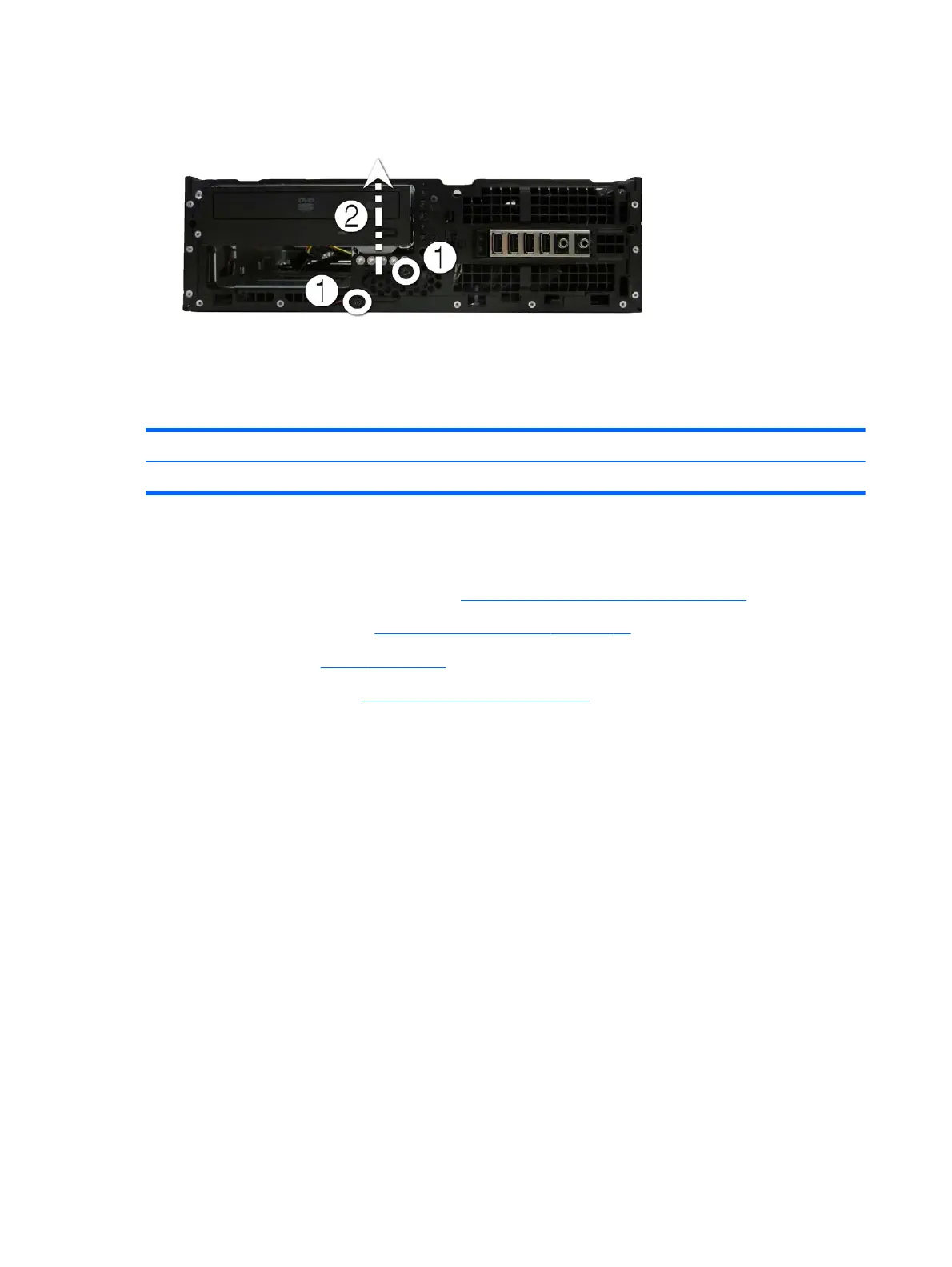

Figure 7-46 Removing the speaker
To install the speaker, reverse the removal procedures.
Heat sink
Description Spare part number
Heat sink 636919-001
The heat sink is secured atop the processor with four captive Torx screws. The heat sink does not
include a fan.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 48).
2. Remove the access panel (
Computer Access Panel on page 50).
3. Remove the baffle (
Baffle on page 80).
4. Remove the chassis fan (
Front Fan Assembly on page 81).
84 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
