5. Press and hold down the latch to disconnect the power cable (1) and data cable (2) from the
back of the hard drive.

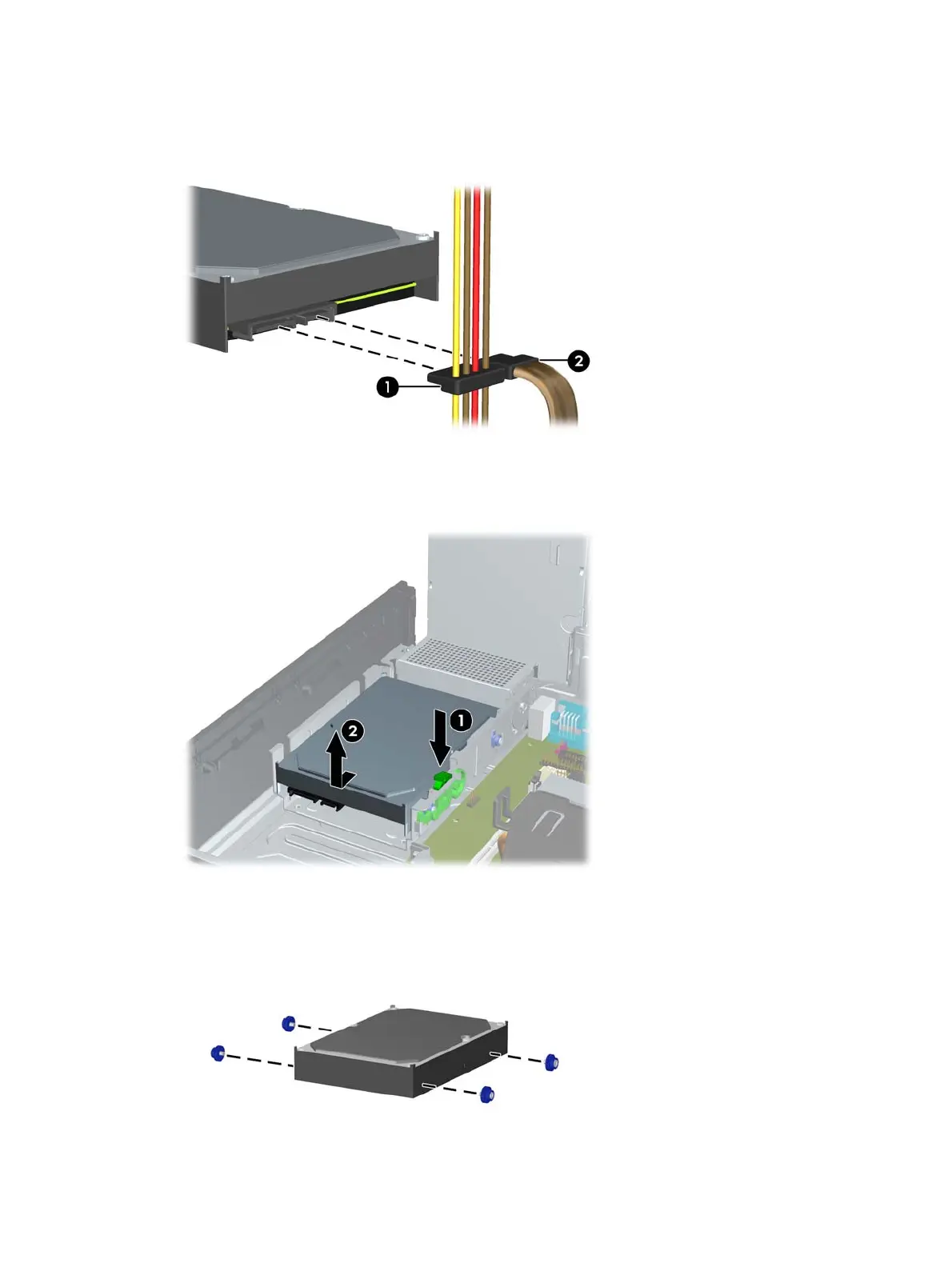

Figure 7-37 Disconnecting the Hard Drive Power Cable and Data Cable
6. Press down on the green release latch next to the hard drive (1). While holding the latch down,
slide the drive forward until it stops, then lift the drive up and out of the bay (2).
Figure 7-38 Removing the Hard Drive
7. To install a hard drive, you must transfer the silver and blue isolation mounting screws from the
old hard drive to the new hard drive.
Figure 7-39 Installing Hard Drive Mounting Screws
78 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
