HP S7500/MV7500/CV7500

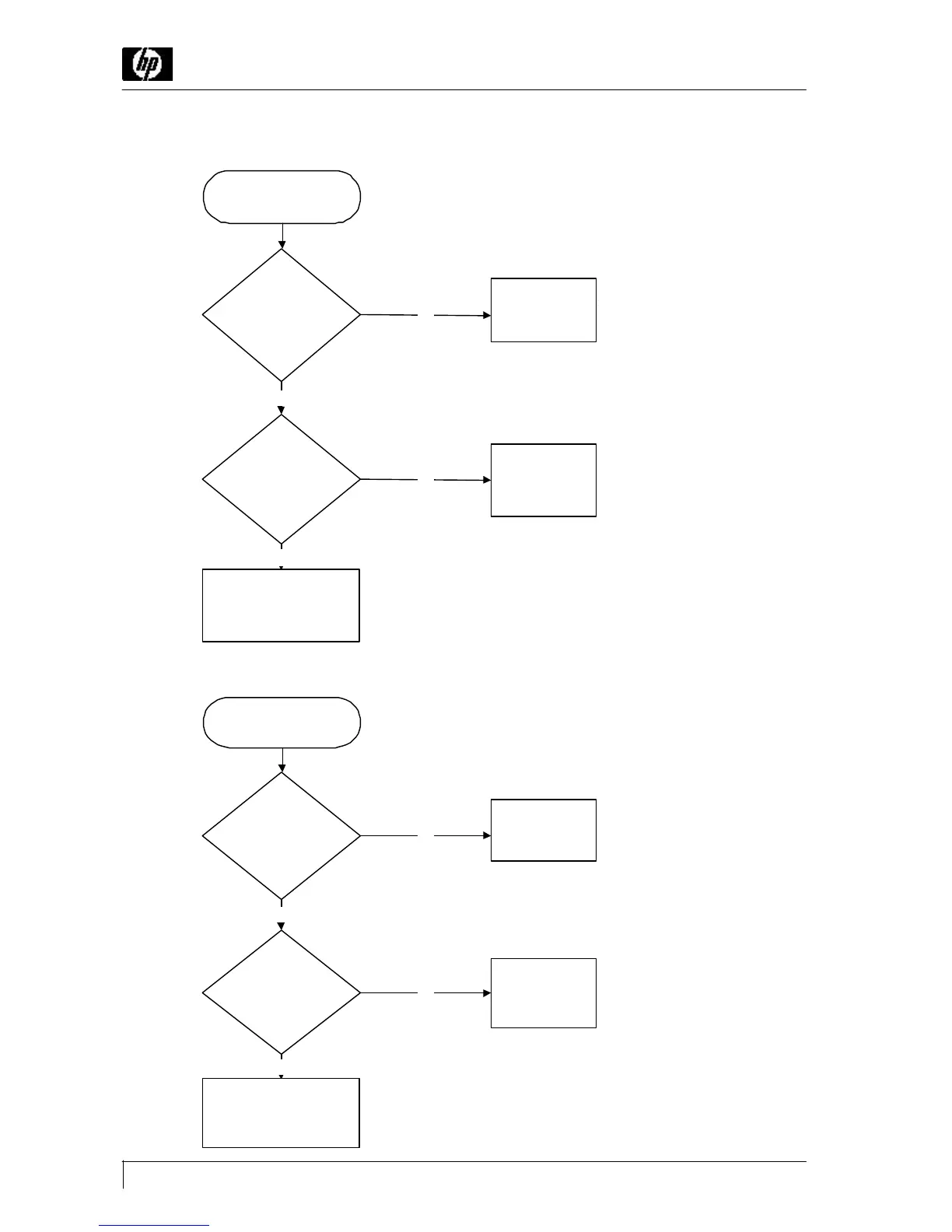

5-5 Out of Horizontal Synchronization
5-6 Out of Vertical Synchronization
Check or replace
the signal cable or
H. sync pin 41
of I701.
Check or replace
I401, C406
Yes
Horizontal
sync present at
pin 15 of I401
Check
I401 pin 8 H. output
frequency & pin 29
waveform
Out of Horizontal
Synchronization
No
Yes
No
Check Q401,
T401, Q402,
R424, D401
Check signal
cable & V. sync
pin 42
of I701.
Check or replace
I401,
Yes
Vorizontal
sync present at
pin 14 of I401
Check
I401 pin 24 waveform
Out of Vorizontal
Synchronization
No
Yes
No
Check I401 pin 13 & pin
14.
