Replacing the Front Bezel
1. Place the bottom hinge points on the front bezel in their corresponding slots in the chassis (1).
2. Rotate the front bezel onto the chassis (2).
3. Snap the catches at the top of the bezel into place (3).
4. Snap the release tabs into place (4).

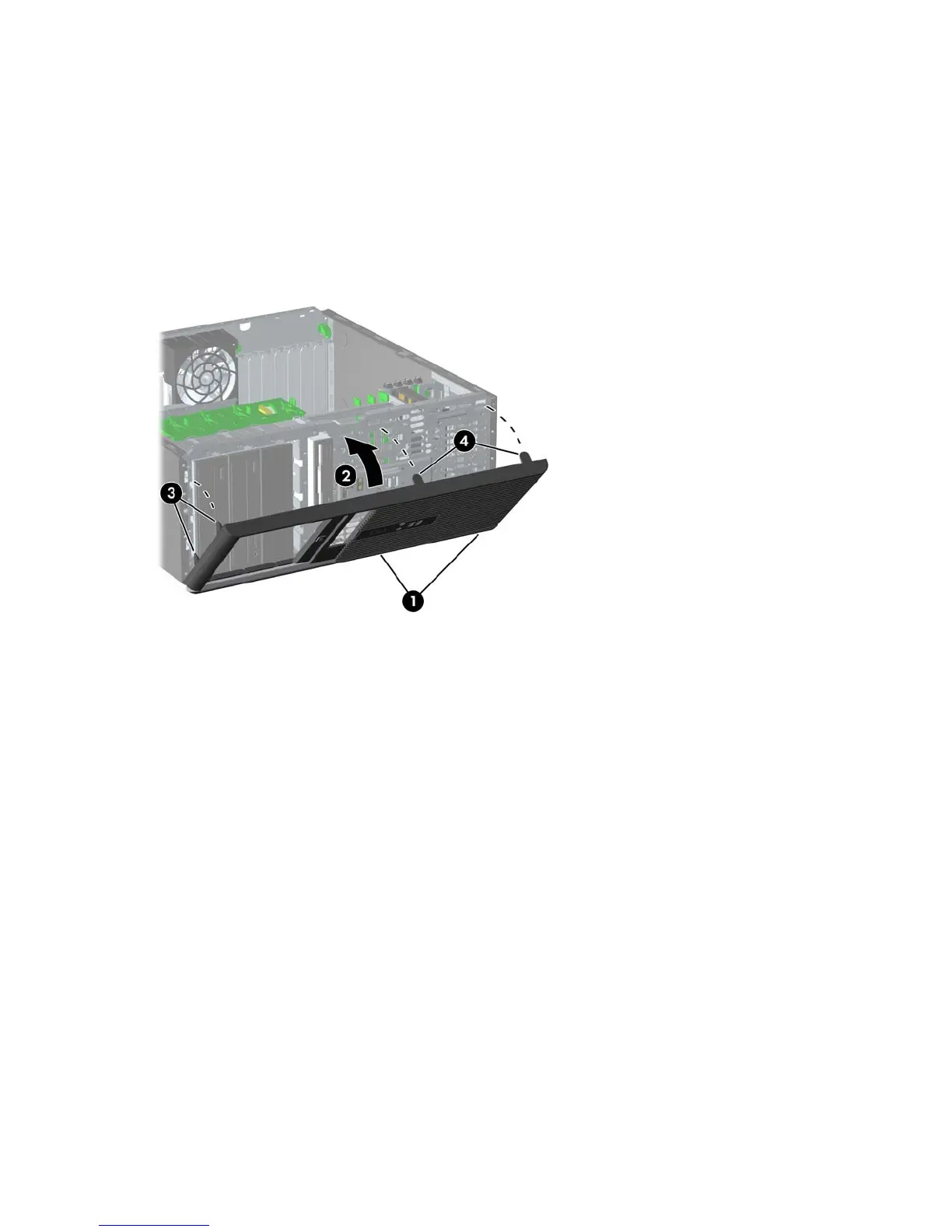

Figure 2-5 Replacing the Front Bezel
14 Chapter 2 Hardware Upgrades ENWW
