7. Remove the drive from the drive bay as follows:
●
To remove a 5.25-inch drive in the desktop configuration, press down on the yellow drivelock
mechanism (1) and slide the drive from the drive bay (2).
CAUTION: When the yellow drivelock is pressed, all the external 5.25-inch drives are
released so do not tilt the unit and allow the drives to fall out.

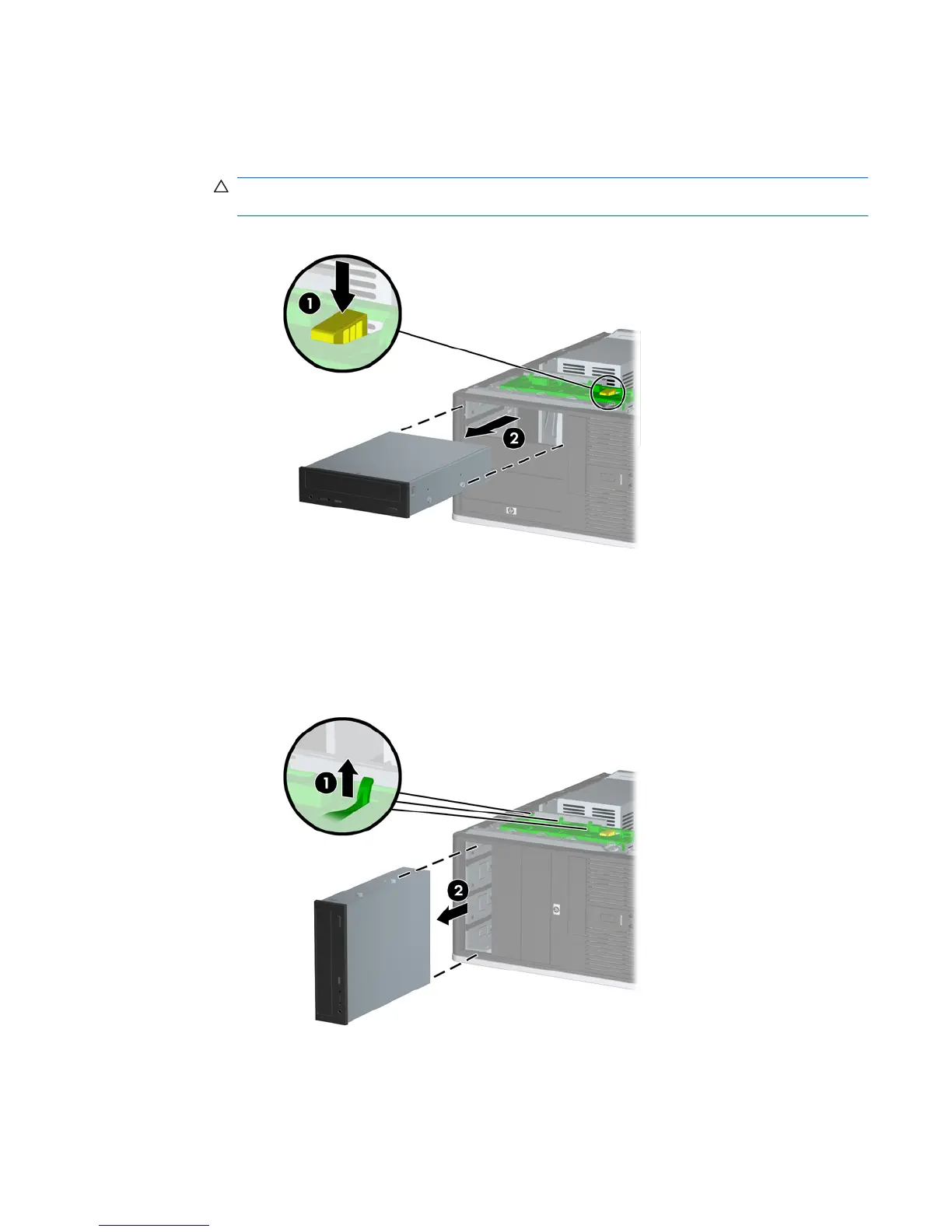

Figure 2-20 Removing a 5.25-inch Drive in the Desktop Configuration (Optical Drive shown)
●
To remove a 3.5-inch drive or a 5.25-inch drive in the minitower configuration, pull up on the
green drivelock mechanism (1) for that specific drive and slide the drive from the drive bay
(2).
Figure 2-21 Removing a 3.5-inch Drive or a 5.25-inch Drive in the Minitower Configuration
(Optical Drive shown)
ENWW Removing a Drive from a Drive Bay 29
