HP dc7900 - Convertible Minitower PC

3. Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and
move the thermal sensor away from the carrier (2).

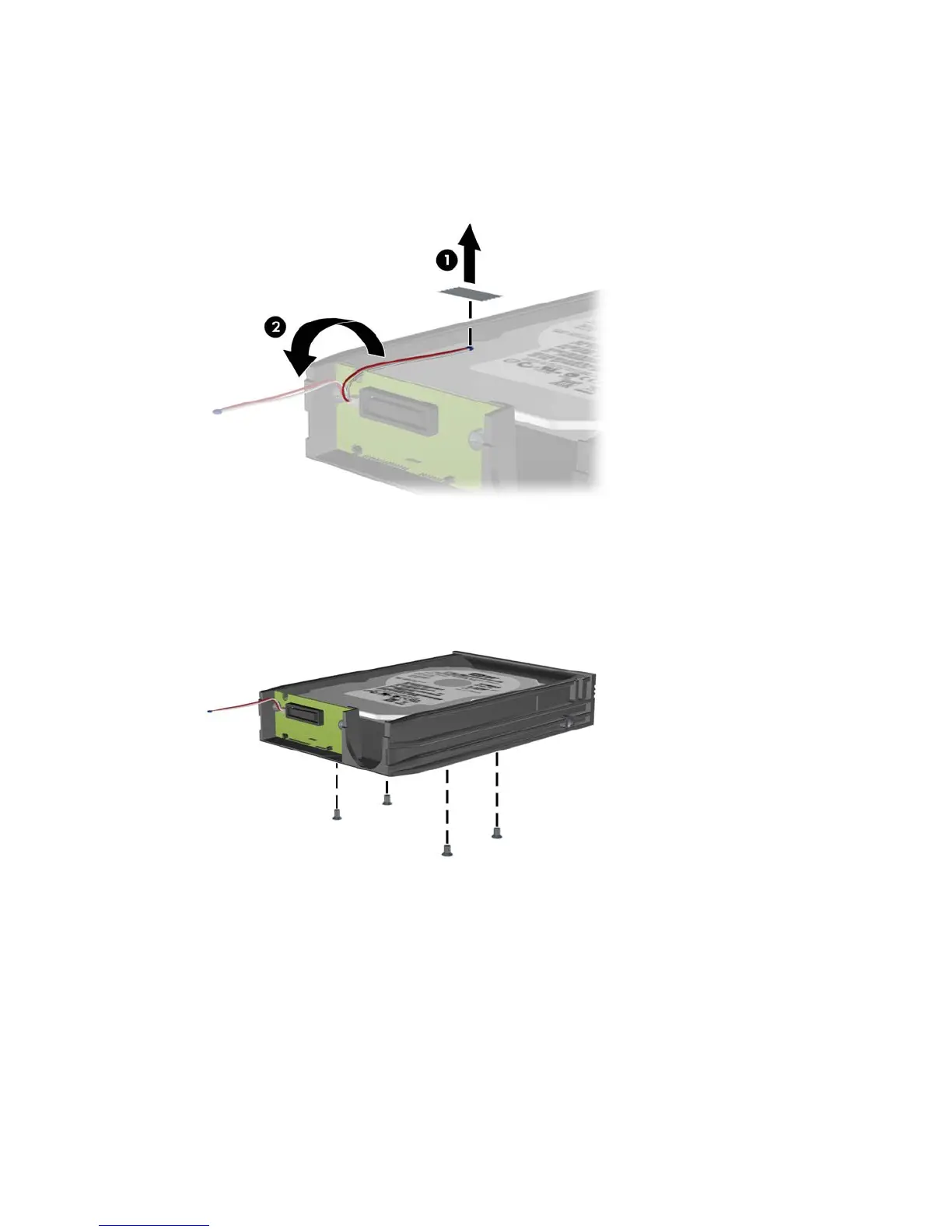

Figure 2-32 Removing the Thermal Sensor
4. Remove the four screws from the bottom of the hard drive carrier.
Figure 2-33 Removing the Security Screws
ENWW Installing Additional Drives 39
