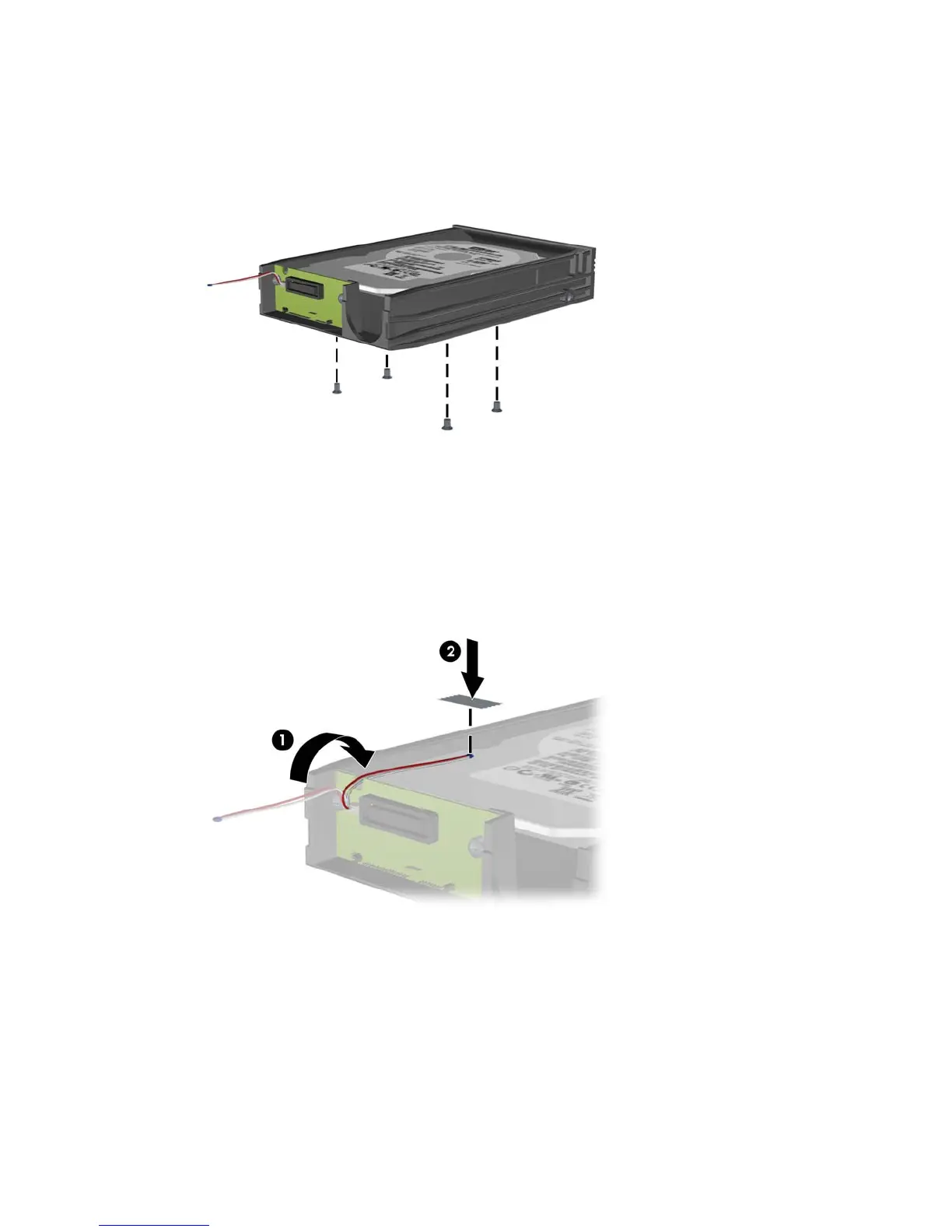

7. Replace the four screws in the bottom of the carrier to hold the drive securely in place.
Figure 2-36 Replacing the Security Screws
8. Place the thermal sensor on top of the hard drive in a position that does not cover the label (1) and
attach the thermal sensor to the top of the hard drive with the adhesive strip (2).
Figure 2-37 Replacing the Thermal Sensor
ENWW Installing Additional Drives 41
