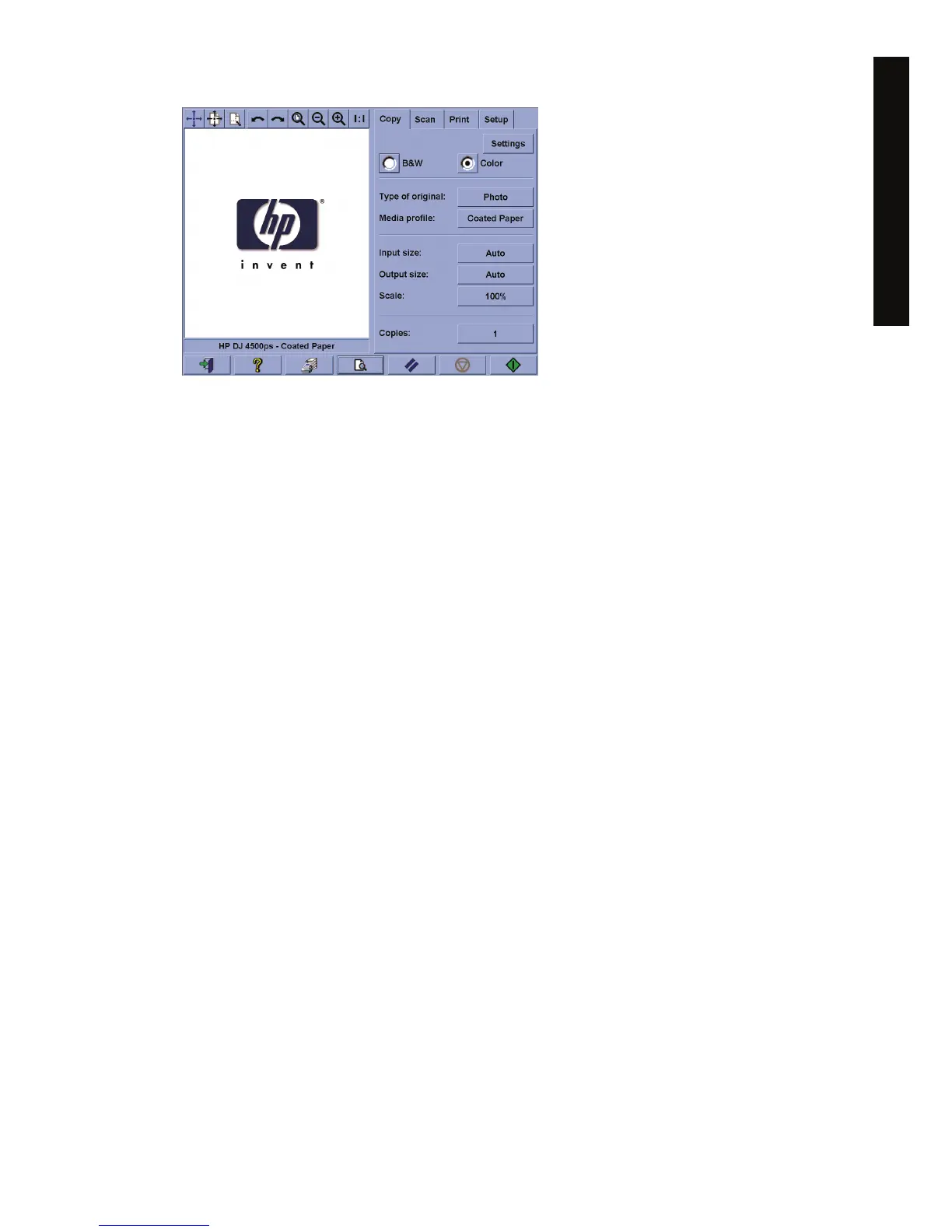

The preview window fills most of the viewing section. Above it is the image toolbar, with nine buttons
that can be used to change the preview in some way (see Using your printer on CD).
The control section contains four tabs: Copy, Scan, Print, and Setup. Each tab provides options that you
can set when performing copy, scan, print, or setup tasks.
At the bottom of the page are seven larger buttons. From left to right:
1. Quit : shuts down or restarts the touch screen
2. Online help : provides more information on some topics than this document
3. Print queue : manages the print queue
4. Preview : scans the document to preview the image and select the area of interest
5. Reset : resets settings to default values
6. Stop : cancels the current activity
7. Copy, Scan, or Print depending on the selected tab
ENWW Scanner software [4500] 9
Introduction
