HP Designjet 4000 Setup Instructions

1
2
3
4
5
6
5

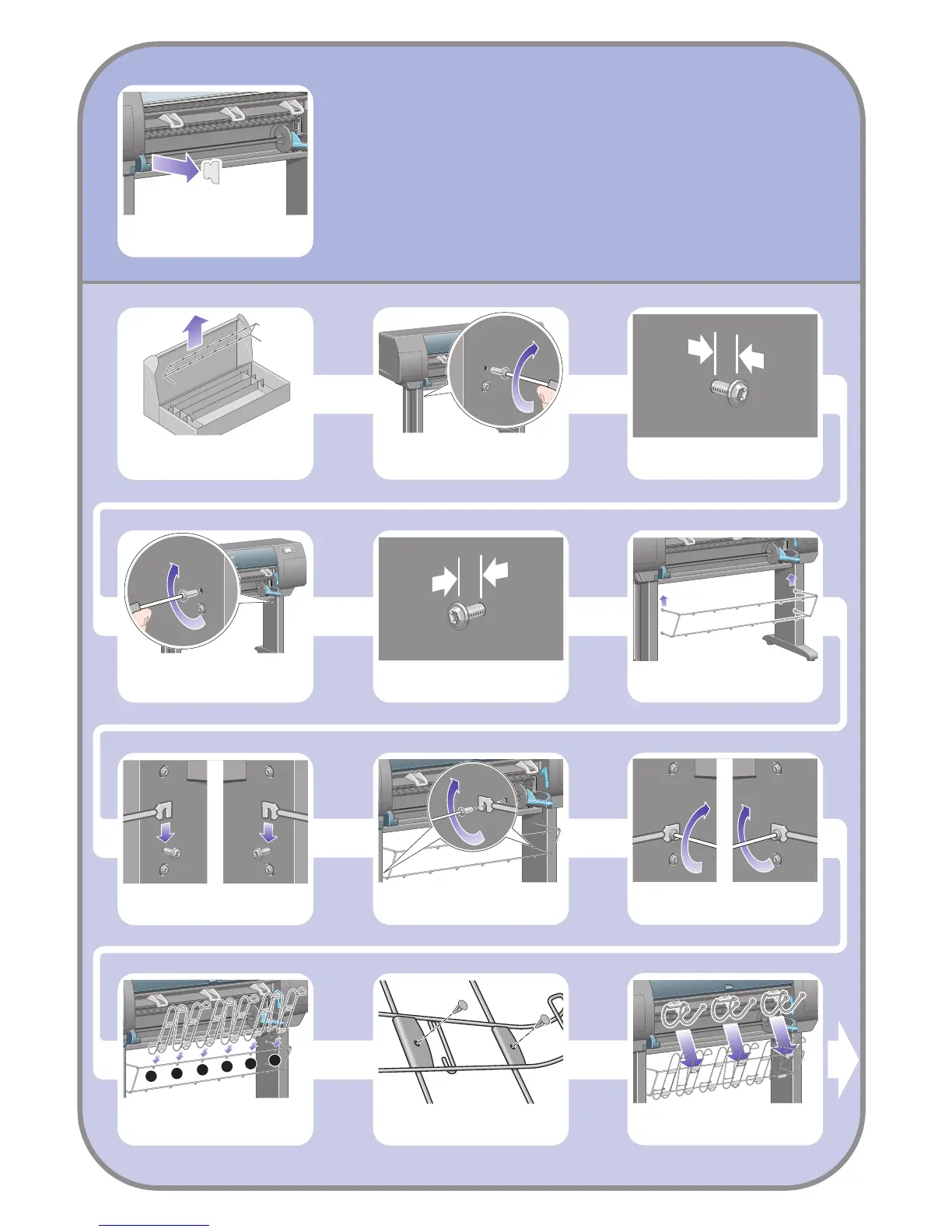

Locate the bin components.
Fix one screw to the inside of the stand’s left
leg.
Do not fully fit the screw.
Lift the supporting framework of the bin into
position in front of the printer.
Fix one screw to the inside of the stand’s right leg.
Fix the top arms of the bin to the two screws that
you have just fitted.
Do not fully fit the screw.
Fix the lower arms of the bin to the stand using
one screw for each leg.
Now tighten the two top screws.
Clip all six loops to the frame of the bin. Locate the
loops with rear extensions in positions 2, 4, and 6.
5 Bin assembly
Secure all six loops to the frame, using two clips
on each loop.
Fit all three mobile stoppers to the three loops
indicated above.
Remove the spindle lock foam piece.
Then replace the spindle.

HP Designjet 4000 Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Width	42 inches
Memory	256 MB
Ink Types	Dye-based (color), pigment-based (black)
Number of Ink Cartridges	4
Media Types Supported	Bond and coated paper, technical paper, film, photographic paper, backlit
Interface	USB 2.0, Ethernet
Maximum Print Size	42 inches (1066.8 mm) wide, unlimited length
Roll Maximum Outer Diameter	13.5 cm
Roll Width	24 to 42 inches
Hard Disk Capacity	40 GB
Operating Systems	Windows, Mac OS X
