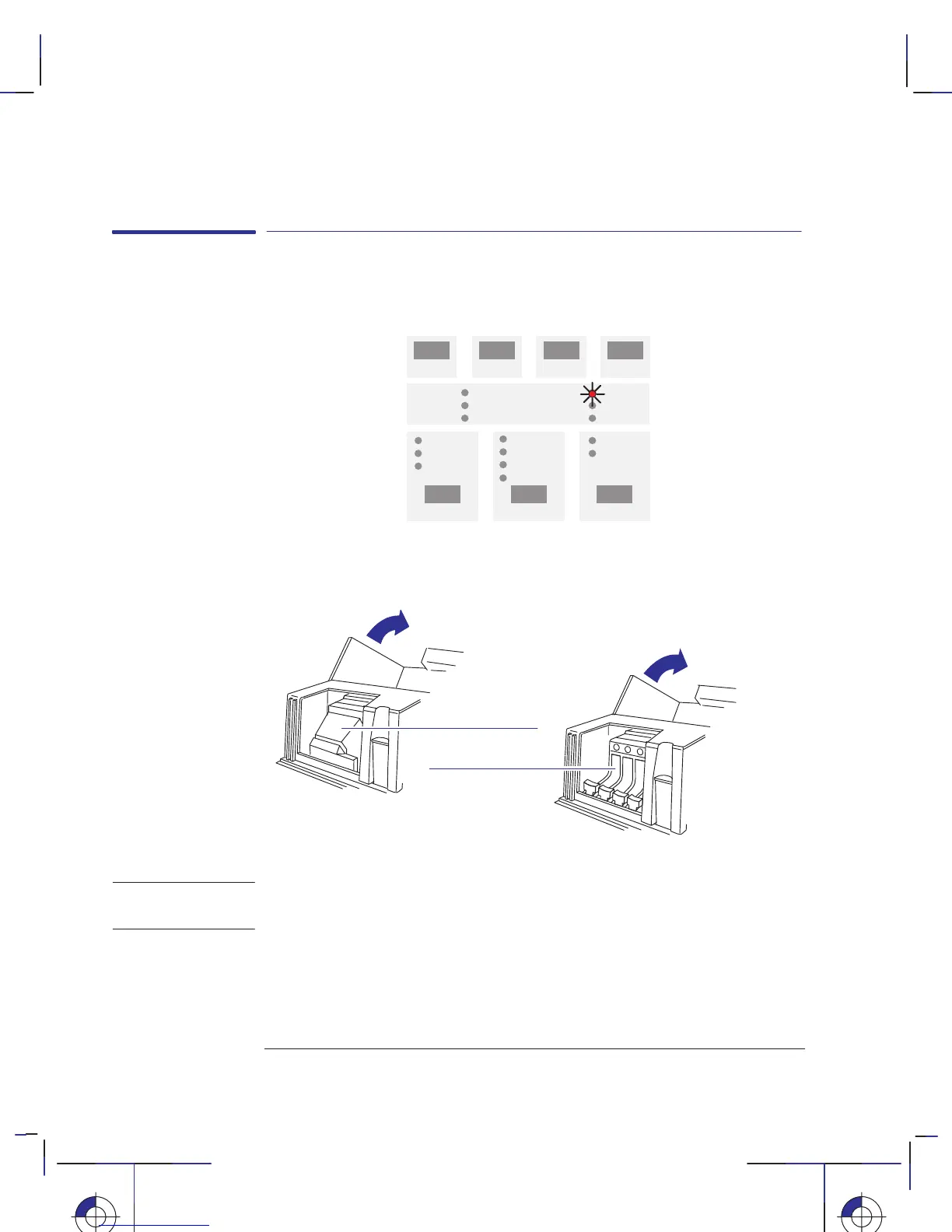

Task 5: Load the print cartridge(s)
1 Make sure that, on the front panel, the Cartridges light is flashing. If other lights
are on, look up their meaning in Chapter 8.
2 Open the cover using the small handle at the center front. If necessary, wait for the
cartridge carriage to move to the service station (the area on the left of the printer).
Cartridge carriage
in service station
450C/
430
455CA
Don’t touch the plastic strip that runs the length of the printer behind the
cartridge carriage. Keep hair, jewelry, clothing, and foreign objects away
from the printer mechanisms.
