Removal and Installation
HP Designjet 4500 Printer Series Service Manual

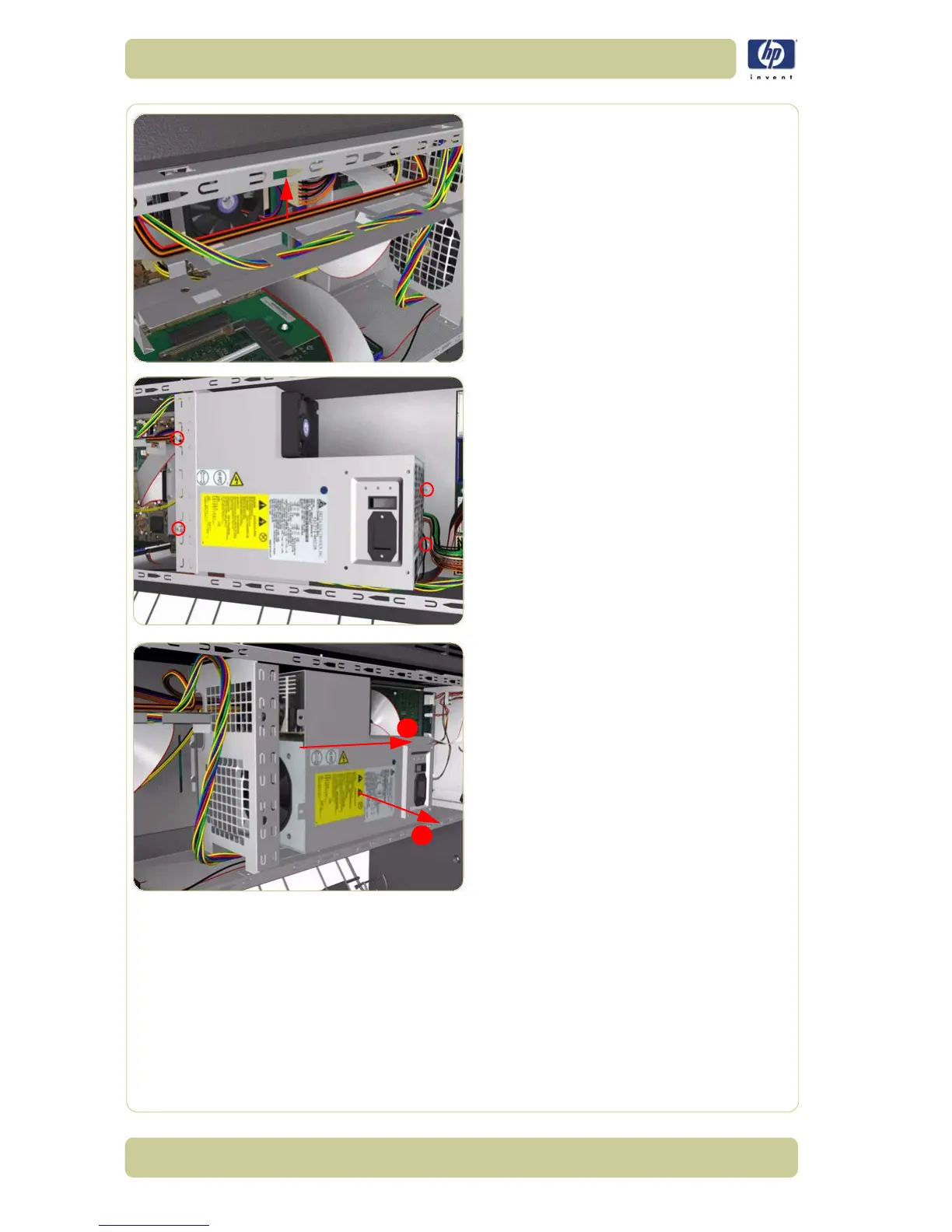

17. Release the Power Supply Cable from the
Cable Support Bracket.
18. Remove four T-10 screws (Type I) that
secure the Power Supply Unit.
19. Route the cables through the hole in the
Electronics Module and remove the Power
Supply Unit from the Printer.
1
2
