8-91
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

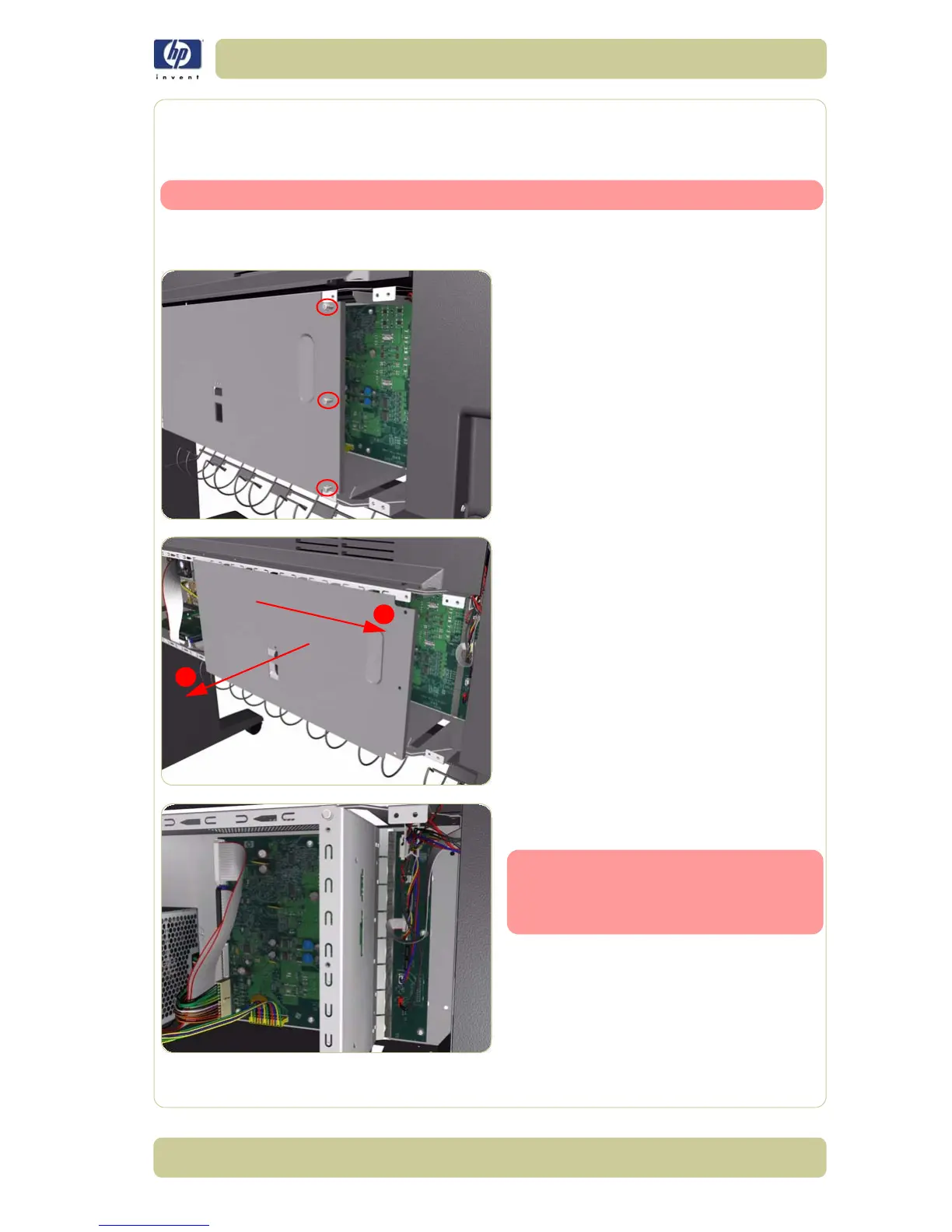

PrintMech PCA
Removal
Switch off the product and remove the power cable.
1. Remove the Left Connector Cover
⇒
Page
8-26.
2. Remove three T-15 screws (Type A) that
secure the PSU cover.
3. Remove the PSU Cover from the Printer.
4. Disconnect ALL cables from the PrintMech
PCA.
Make a note of the connecters you
disconnect, this will help you
when you come to connect the
cables again
1
2
To Next Page
