8-92
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

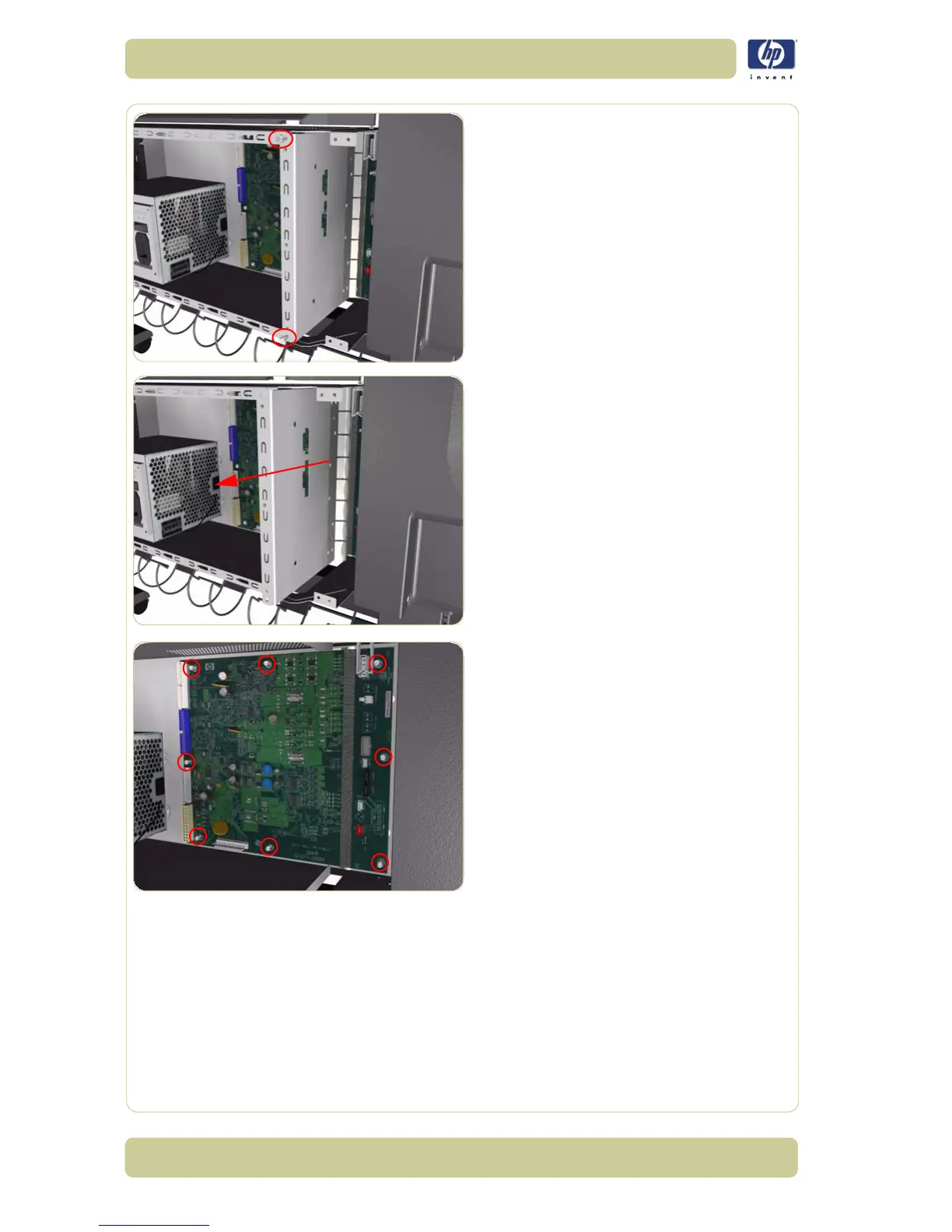

5. Remove two T-15 screws (Type B) that
secure the PrintMech Cover.
6. Slide the PrintMech Cover out of the
Printer.
7. Remove eight T-10 screws (Type I) that
secure the PrintMech PCA.
To Next Page
