Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Rear Path Mylar Strip
Removal
Switch off the product and remove the power cable.

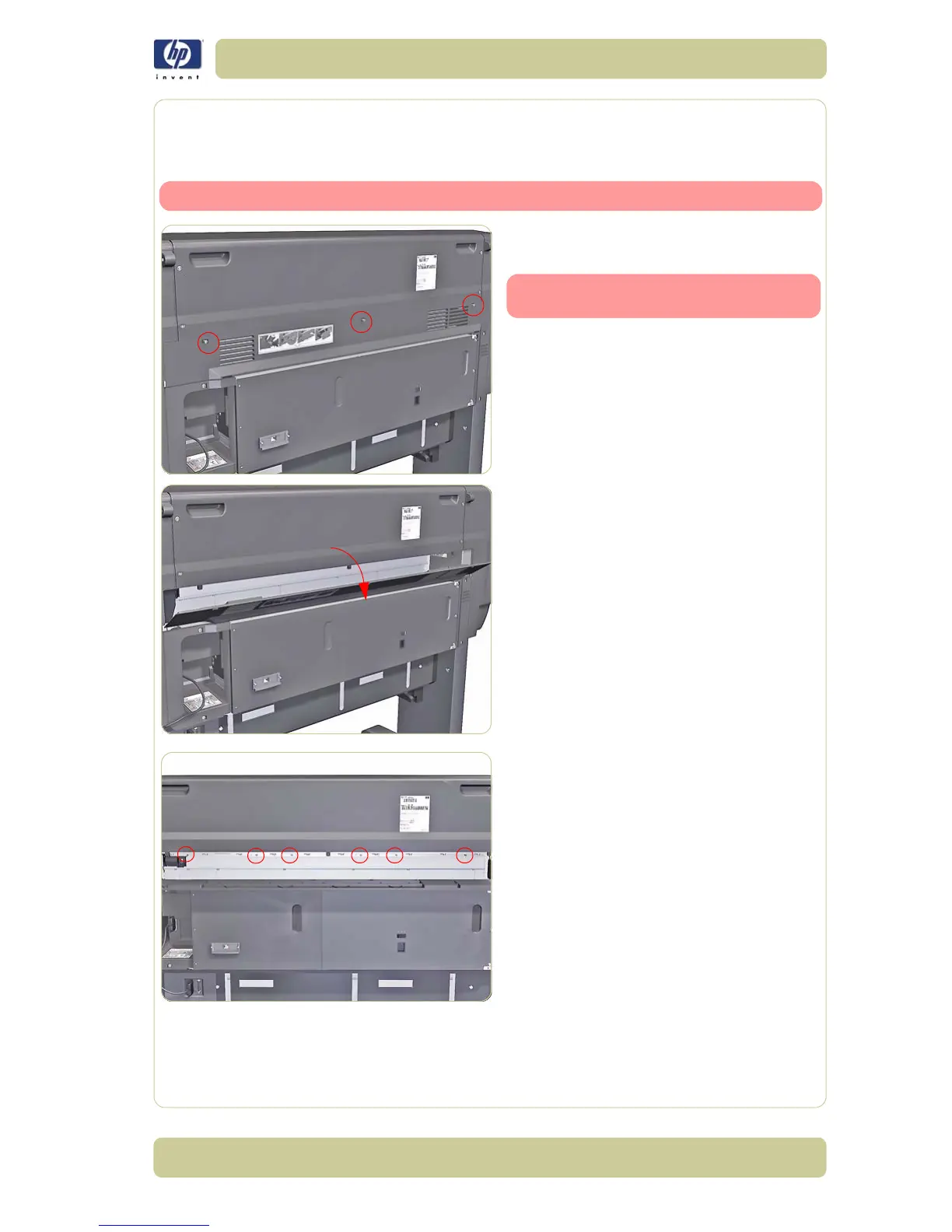

1. Remove three T15 screws (Type G) from
the rear door.
Each screw includes a washer
(part number 3050-1267)
2. Open the Rear Door
3. Remove six T15 screws from a metal L-plate
that secures the Mylar Strip to the back of
the Rear Path.
