Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Cartridge Trays

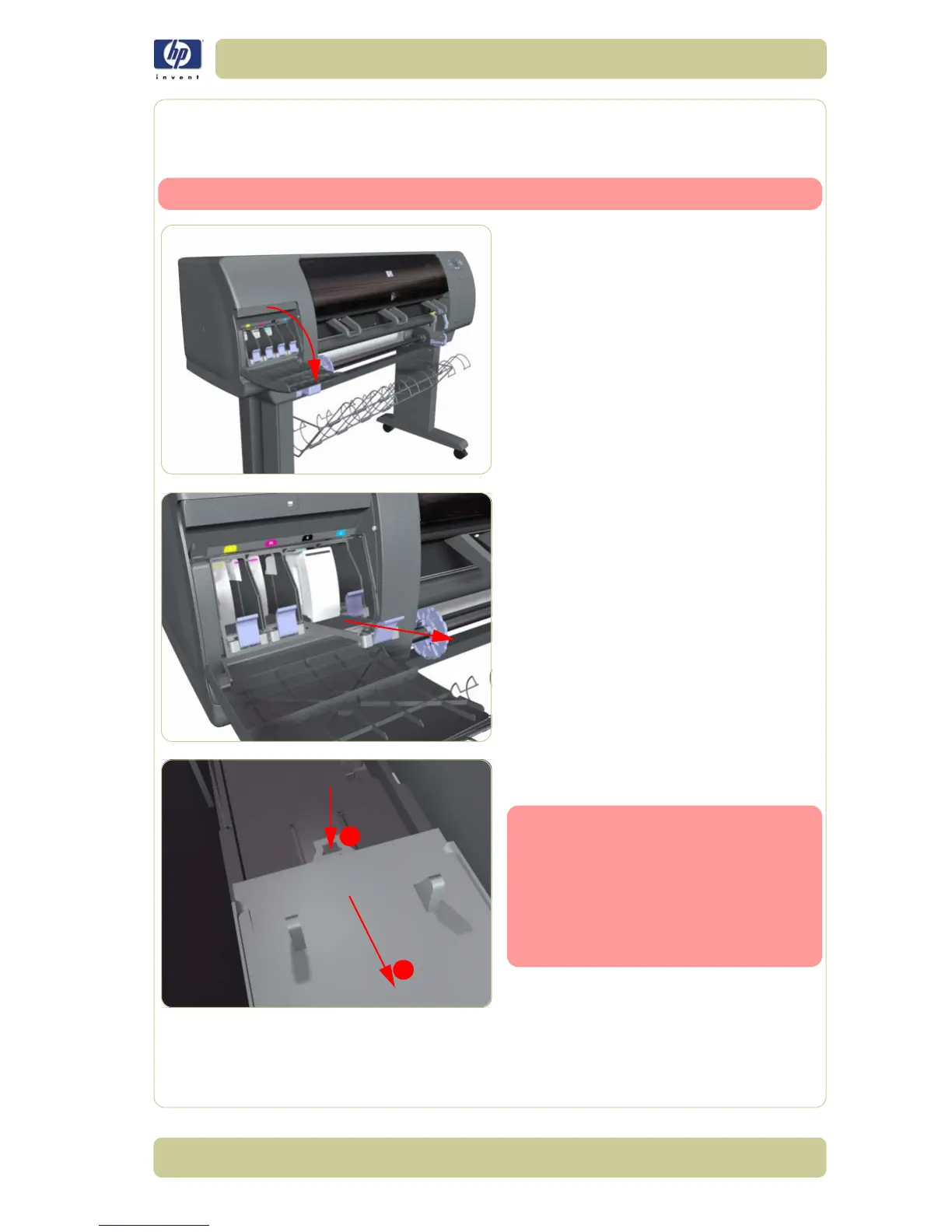

Removal
Switch off the product and remove the power cable.
1. Open the Ink Cartridge Door.
2. Release the Tray Lever of the required color
and pull out the Tray. Remove the Ink
Cartridge if installed.
3. Press down on the Tray clip and pull the
Tray completely out of the Printer.
Note that each Cartridge Tray is
different even though they look
very similar. When selecting the
Cartridge Tray from the Support
Part (it contains four Cartridge
Trays), choose the Tray that
exactly matches the one that you
have just removed.
1
2
