8-118
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

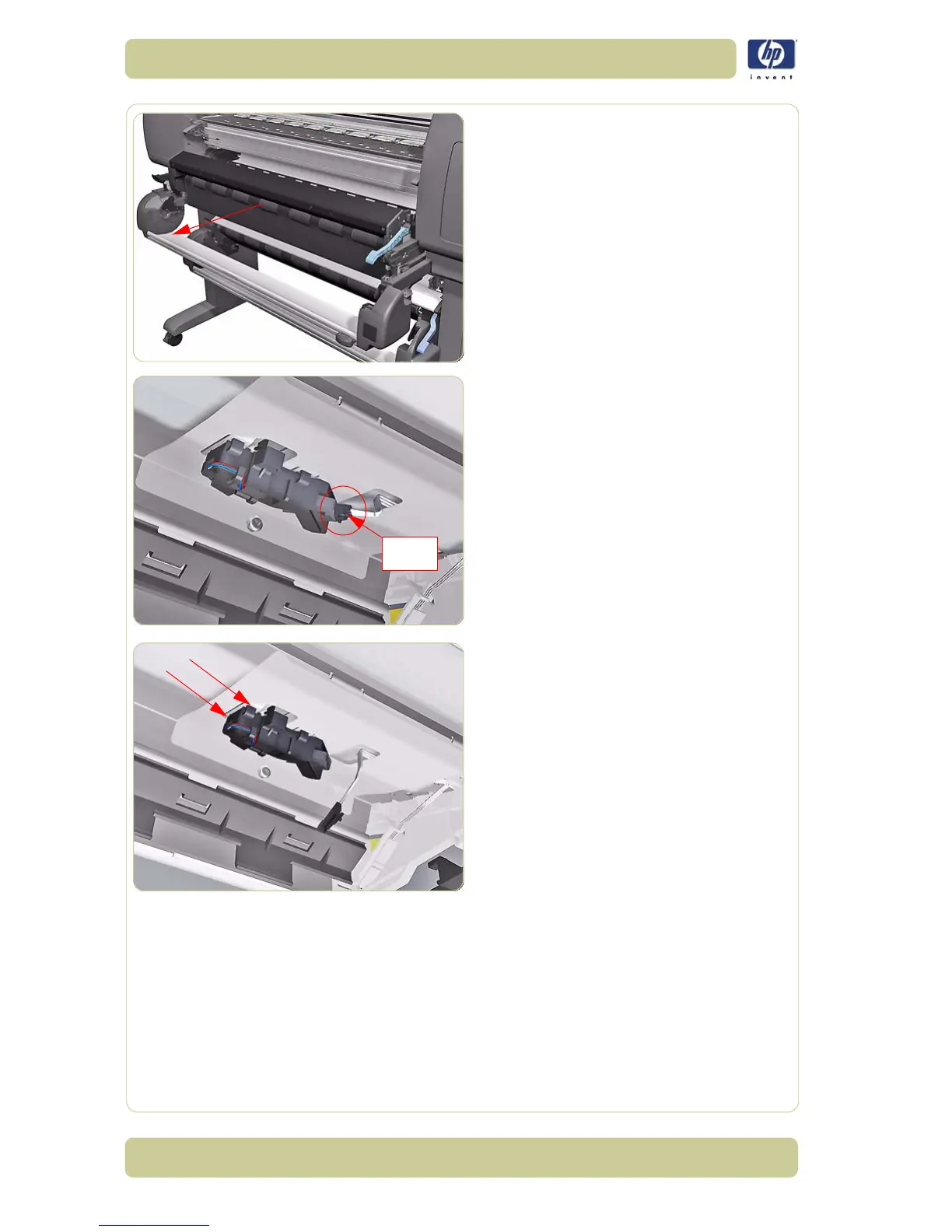

5. Pull the Roll 1 Module towards you as far
as it will go.
6. Disconnect the cable (SSS) from the Single
Sheet Load Sensor below the printer
chassis.
7. Unclip the Sensor from the metal bracket.
SSS
