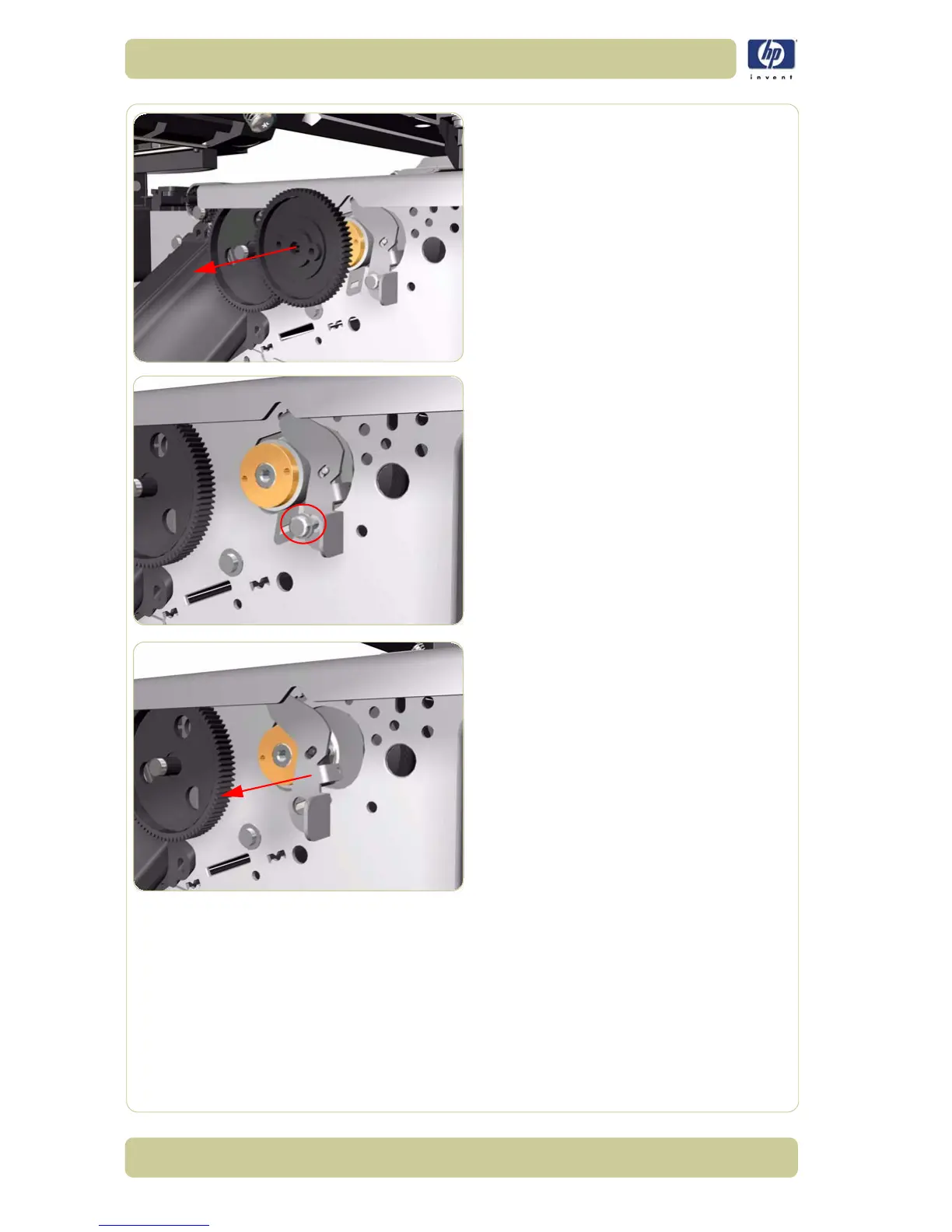

12. Remove the Drive Roller Gear from the
Printer.
13. Remove one T-20 screw (Type B) that
secures the cover on the right hand side of
the Printer.
14. Remove the Cover.
