HP Designjet 4500 - Page 433

8-133
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

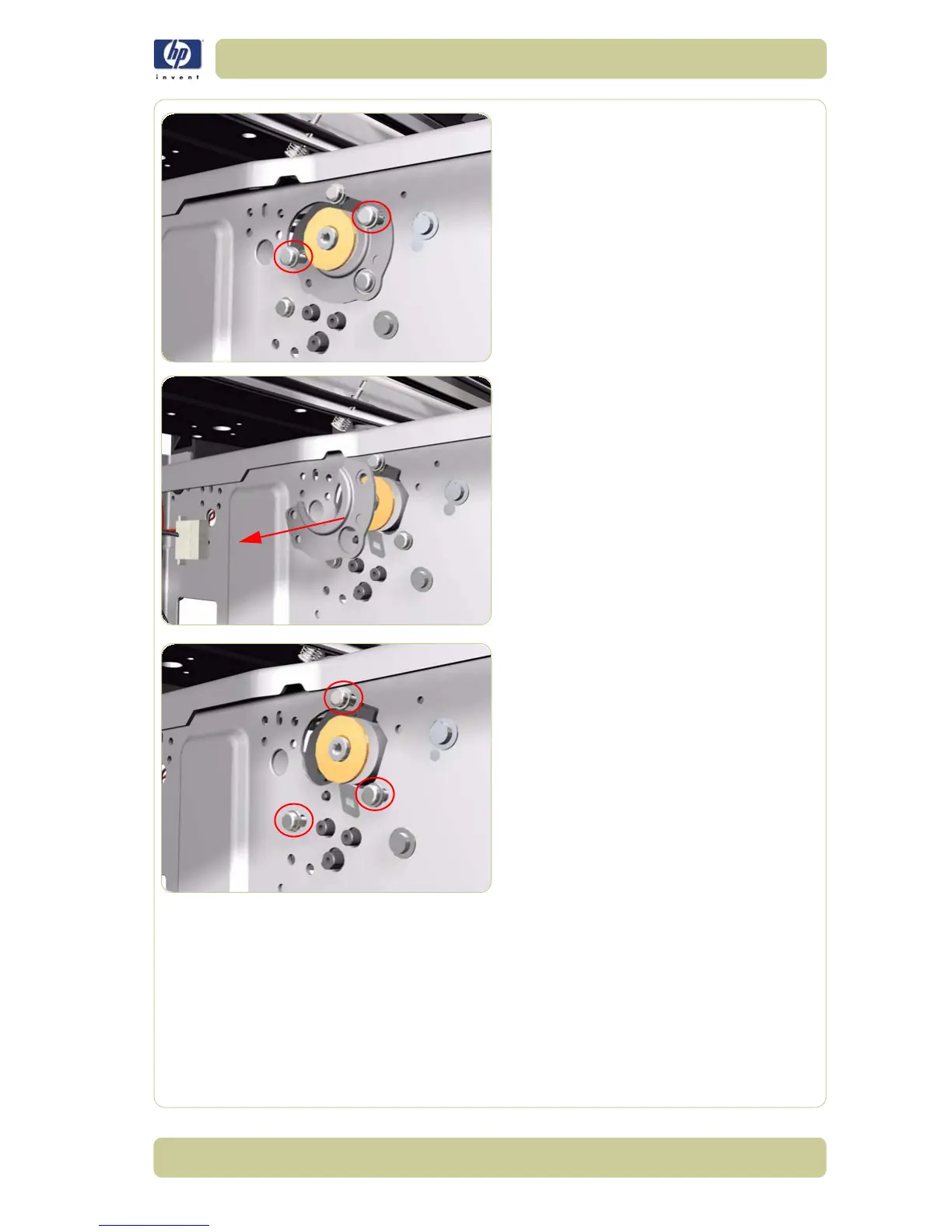

15. Remove two T-20 screws (Type B) that
secure the cover on the left hand side of
the Printer.
16. Remove the Cover.
17. Remove three T-20 screws (Type B) that
secure the Media-Axis Motor Bracket to the
sideplate.
