HP Designjet 4500

8-181
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

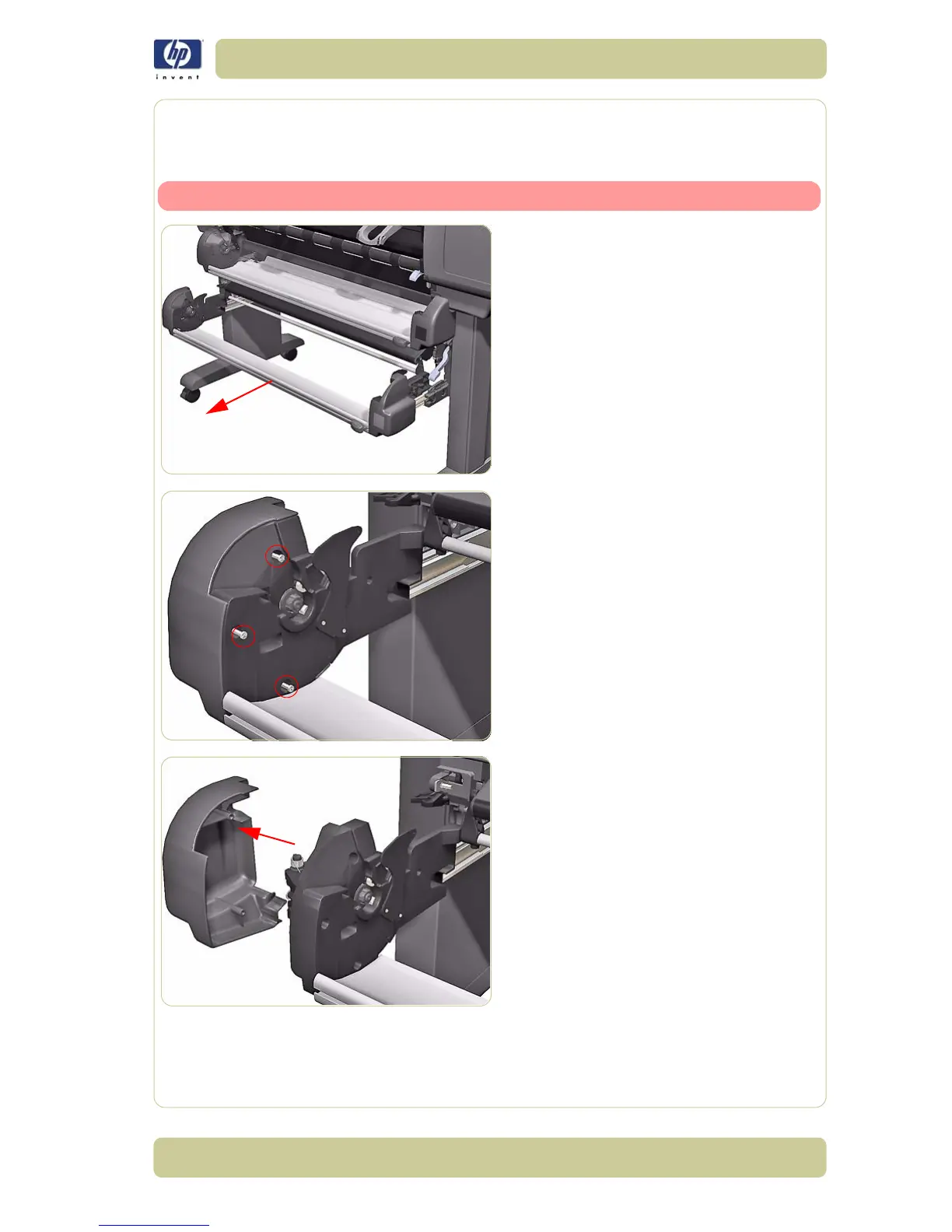

Roll 2 Left Drawer Cover
Removal
Switch off the product and remove the power cable.
1. Pull out the Roll 2 Drawer as far as it will
go.
2. Remove three screws (Type S) that secure
the Left Roll 2 Cover.
3. Remove the Left Roll 2 Cover.
