Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Roll 2 Drawer Bar
Removal
Switch off the product and remove the power cable.

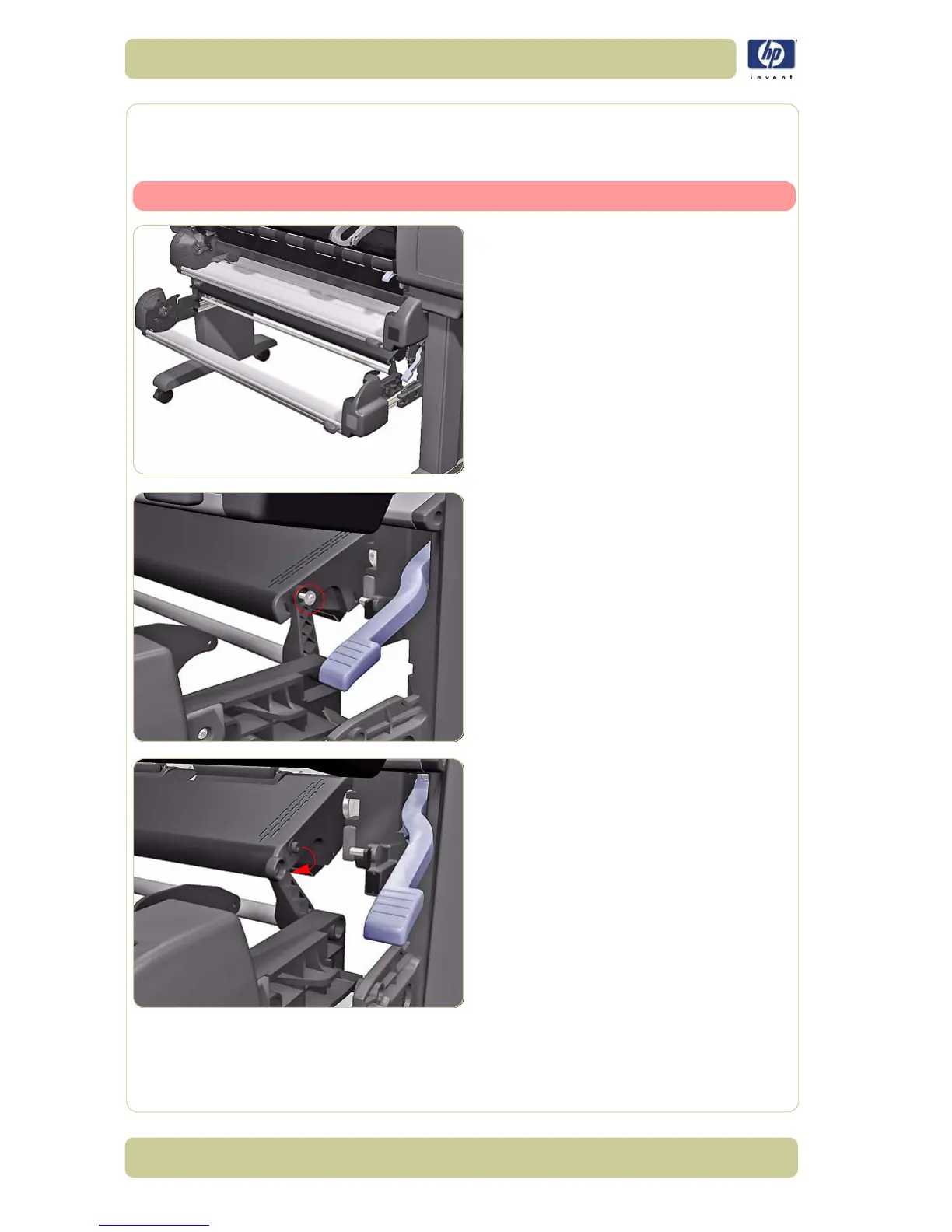

1. Pull out Roll 2 Drawer as far as it will go.
2. Remove one T-15 screw (Type G) and
washer that secures the right side of the
Roll 2 Drawer Bar.
3. Pull the right side of Roll 2 Drawer Bar from
the Feed Roller Assembly.
