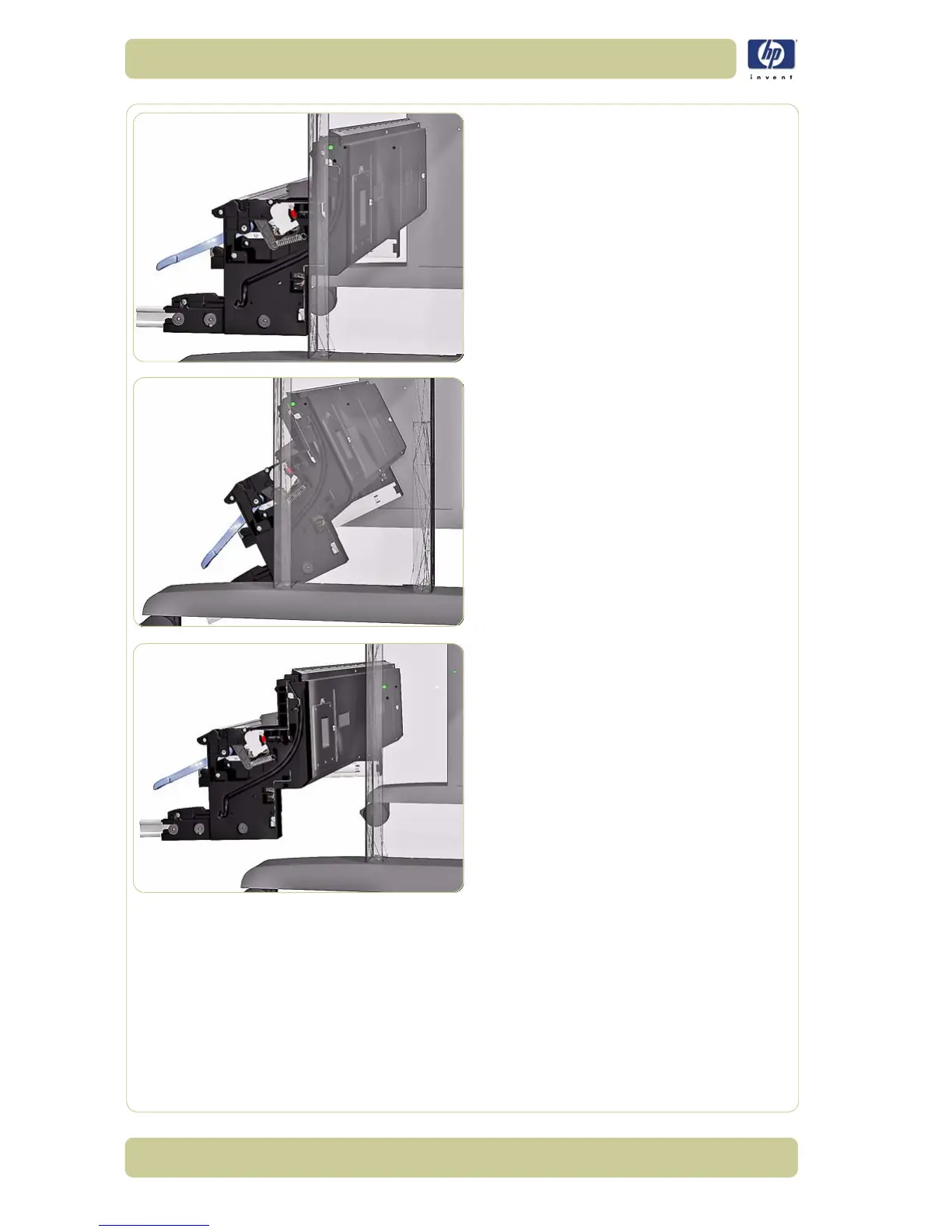

19. Move the Roll 2 Module down until the top
of the assembly hooks onto the two Load
Bearing Pin Screws lower down.
20.You can use the Load Bearing Pin Screws
to hang the Roll 2 Module.
21. Remove the Roll 2 Module from the pins
and place on the floor.
