Removal and Installation
HP Designjet 4500 Printer Series Service Manual

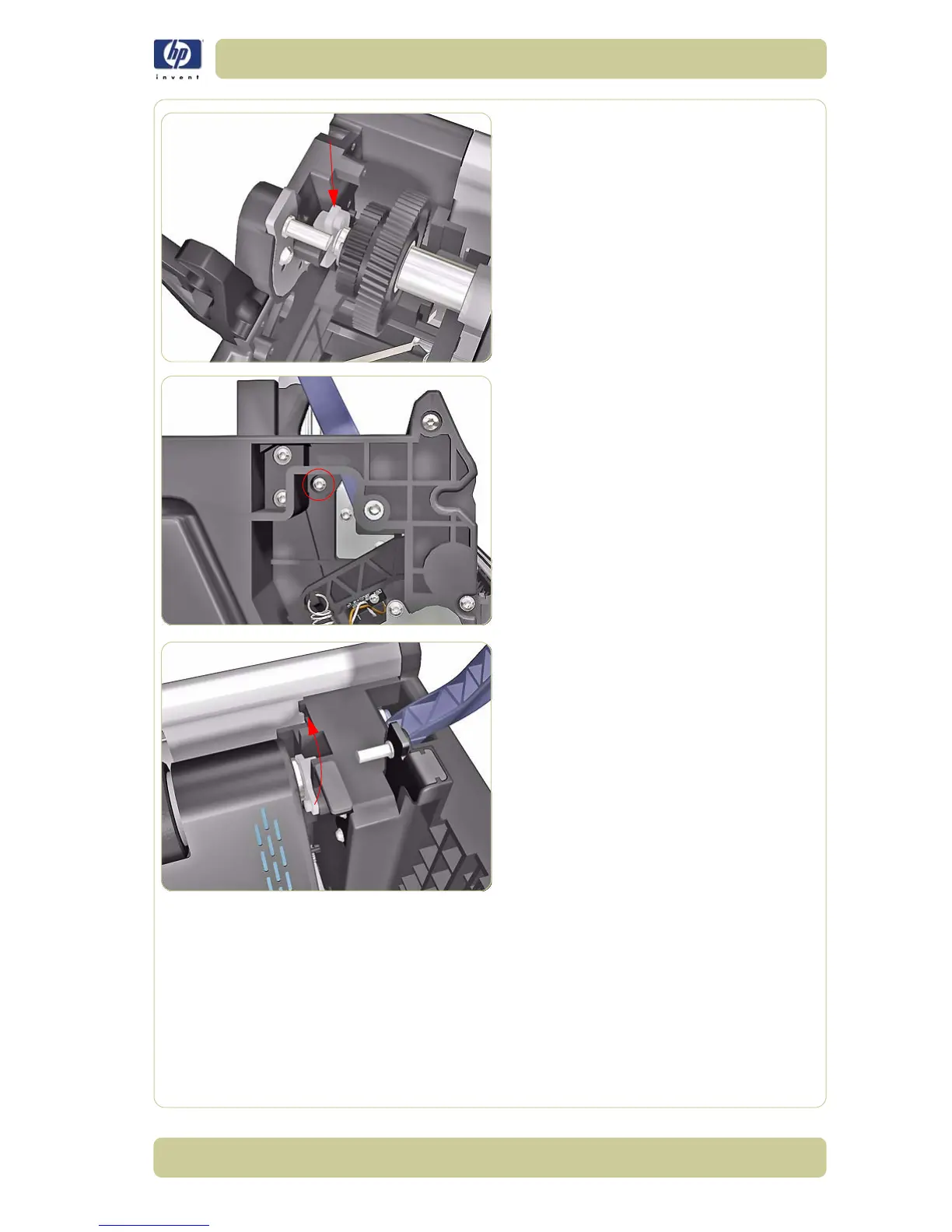

6. Rotate the white plastic bushing until it
reaches the position shown
7. Remove one T-15 screw (Type G) that
secures the white Roll 2 Feed Rollers
Bushing from the right side.
8. Rotate the white Roll 2 Feed Rollers
Bushing on the right side.
