Removal and Installation
HP Designjet 4500 Printer Series Service Manual

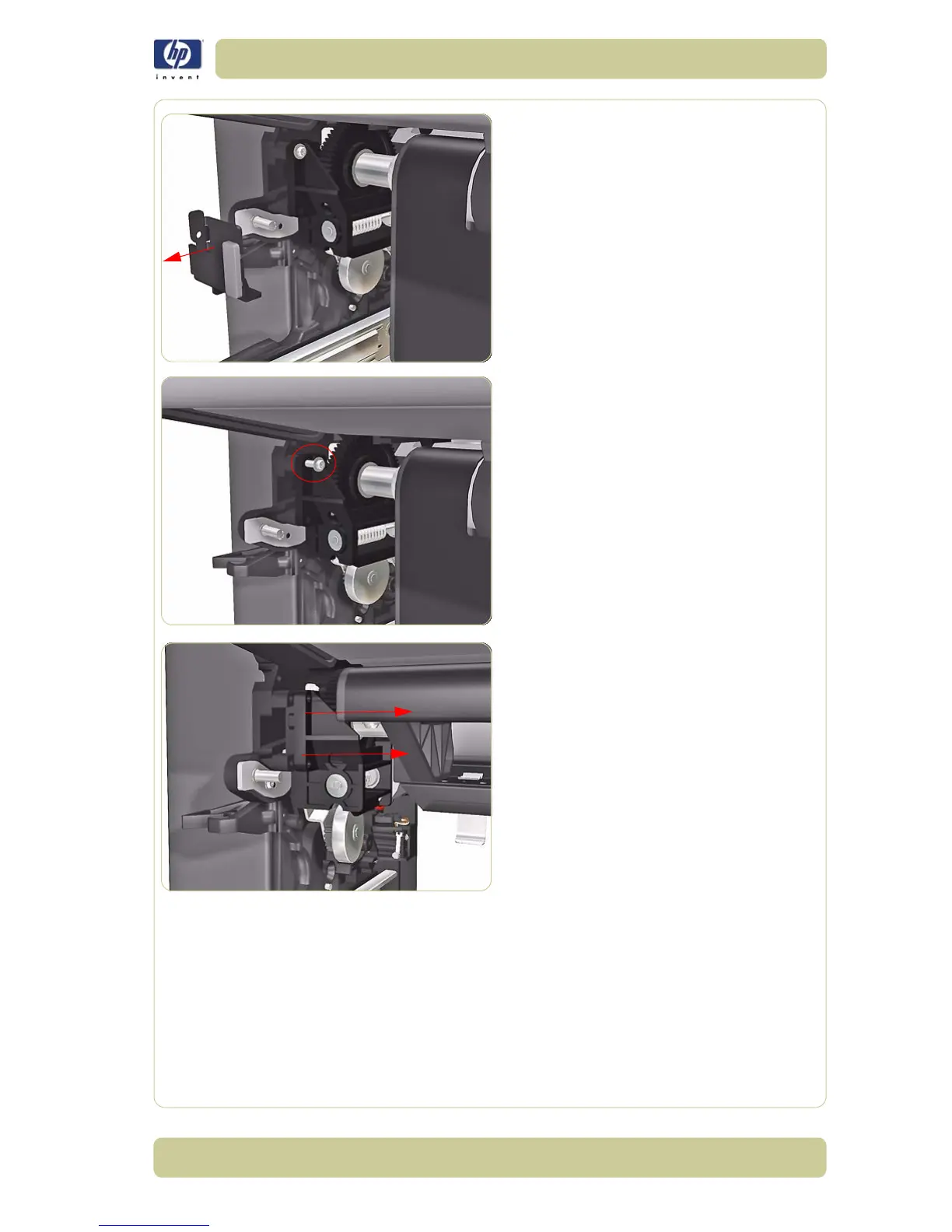

11. Remove the Lower Bracket from the Roll 2
Media Feed Motor.
12. Remove one T15 screws (Type F) that
secures the Roll 2 Media Feed Motor.
13. To release the Roll 2 Media Feed Motor
move the assembly to the right.
