8-214
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

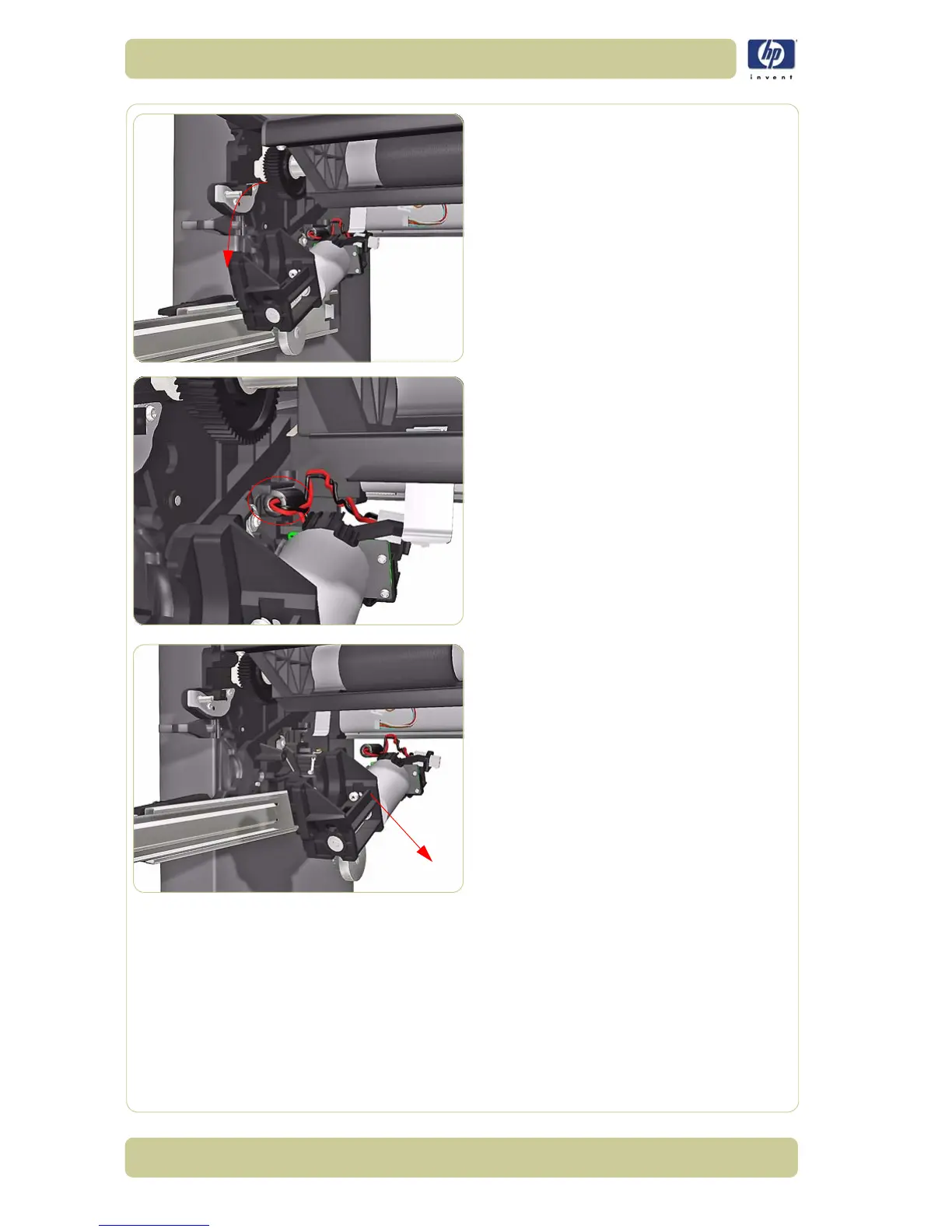

14. Pull down the top part of the Roll 2 Media
Feed Motor.
15. Unclip the ferrite and remove.
16. Remove the Roll 2 Media Feed Motor
Assembly.
