8-219
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

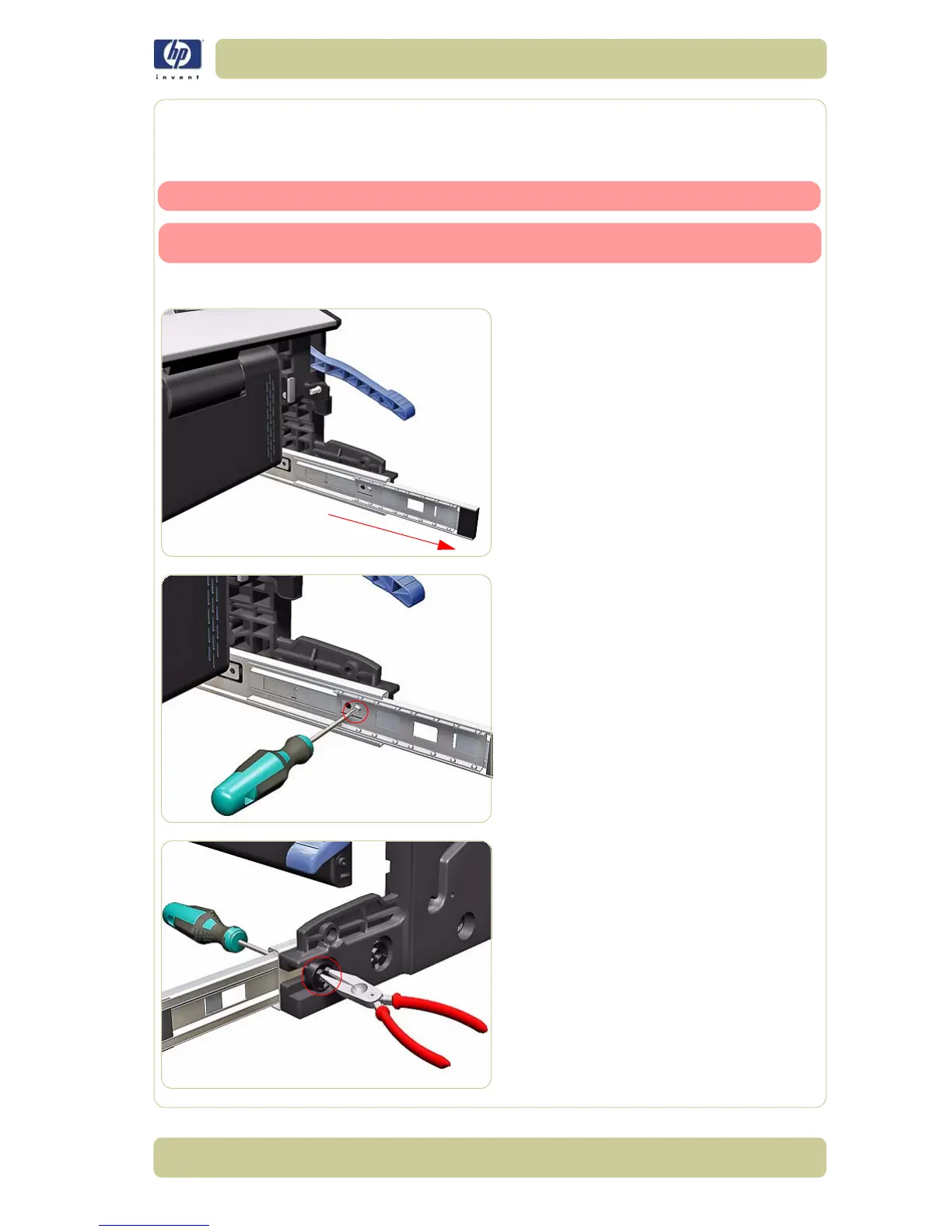

Roll 2 Drawer Sliders
Removal
Switch off the product and remove the power cable.
This procedure describes the removal process for the Right Drawer Slider, use
the same procedure for the Left Drawer Slider.
1. Remove the Roll 2 Module
⇒
Page 8-190.
2. Pull out the Slider Assembly as far as it will
go.
3. Remove one T15 screw (Type G) that
secures the Right Drawer Slider.
4. Hold the Plastic Stop on the other side of
the screw to stop it rotating while you
remove the screw.
To Next Page
