8-220
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

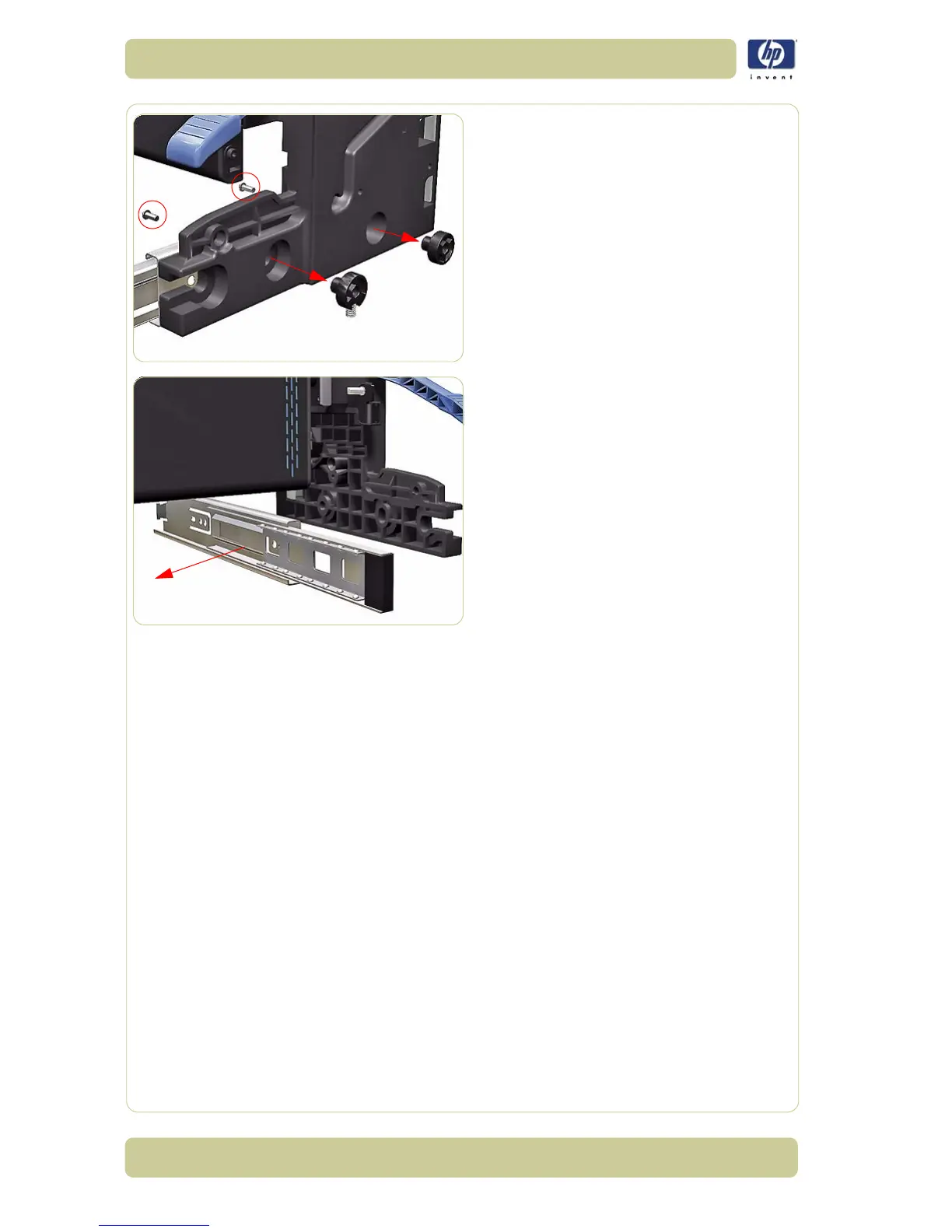

5. Remove two more T15 screws (Type G)
that secure the slide to the right side of the
printer using the same method.
6. Remove the Slider Assembly.
