Removal and Installation
HP Designjet 4500 Printer Series Service Manual

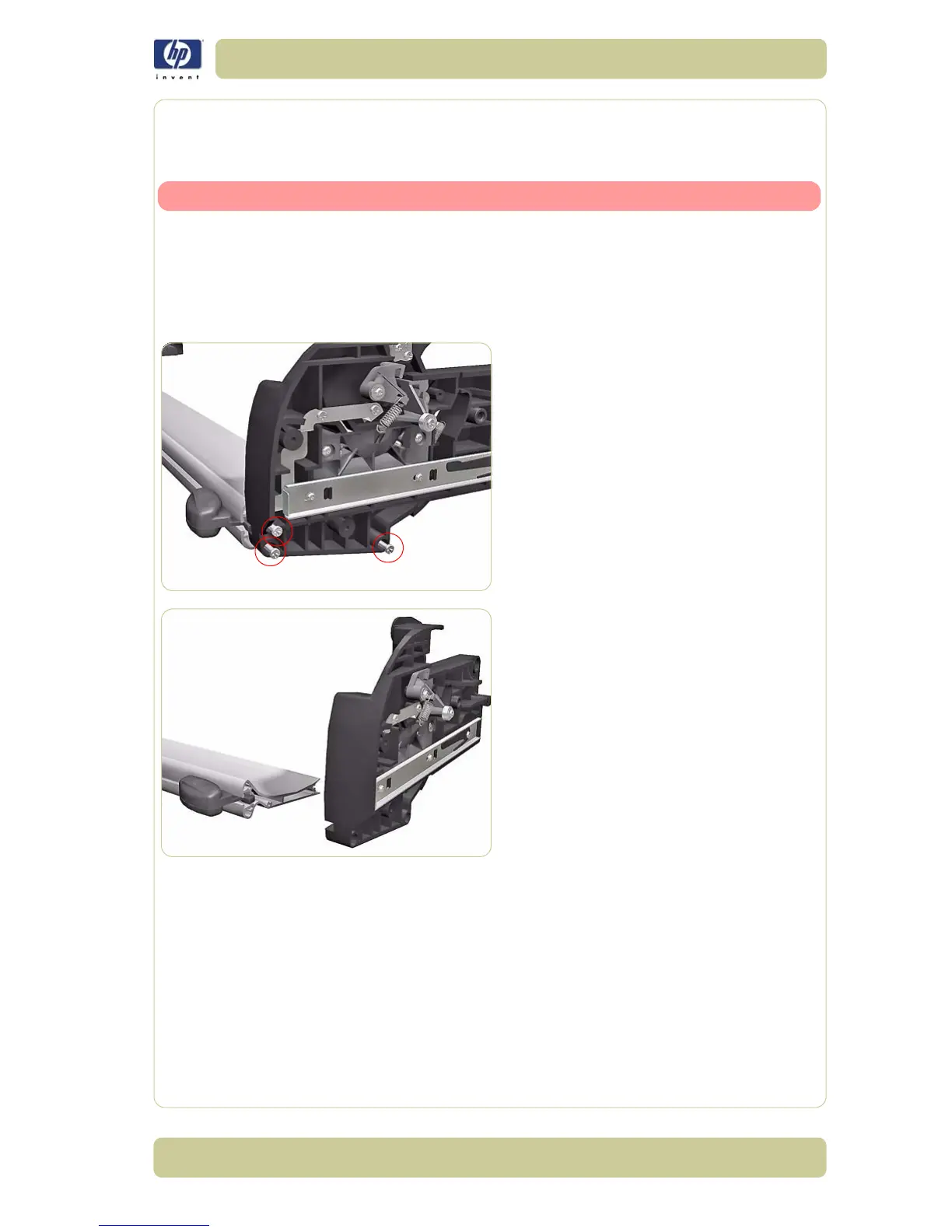

Roll 2 Right Spindle Support
Removal
Switch off the product and remove the power cable.
1. Remove the Roll 2 Right Drawer Cover
⇒
Page 8-179.
2. Remove the Roll 2 Drawer Bar
⇒
Page 8-
182.
3. Remove the Roll 2 Drawer
⇒
Page 8-186.
4. Remove three (Type A) screws that secure
the Right Spindle Support from the Roll 2
Drawer.
5. Remove the Right Spindle Support
