8-224
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

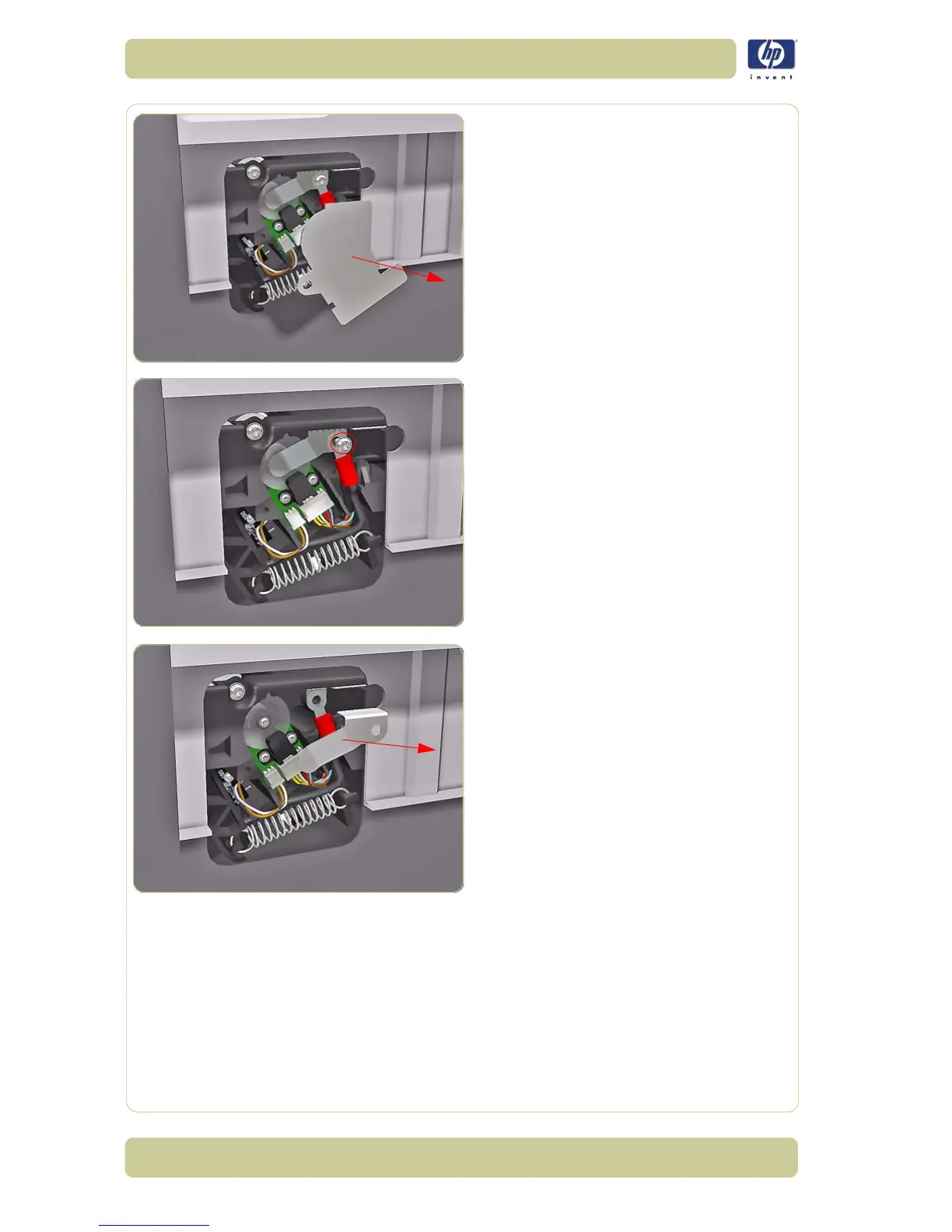

4. Remove the BT Arm Encoder Disc Cover.
5. Remove one T-15 screw (Type F) that
secures the encoder leaf spring and the
earth wire from the right side.
6. Remove the Encoder Leaf Spring from the
right side.
To Next Page
