Heating Lamp
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒ Page 8-242.
2. Remove the Left Cover ⇒ Page 8-244 .

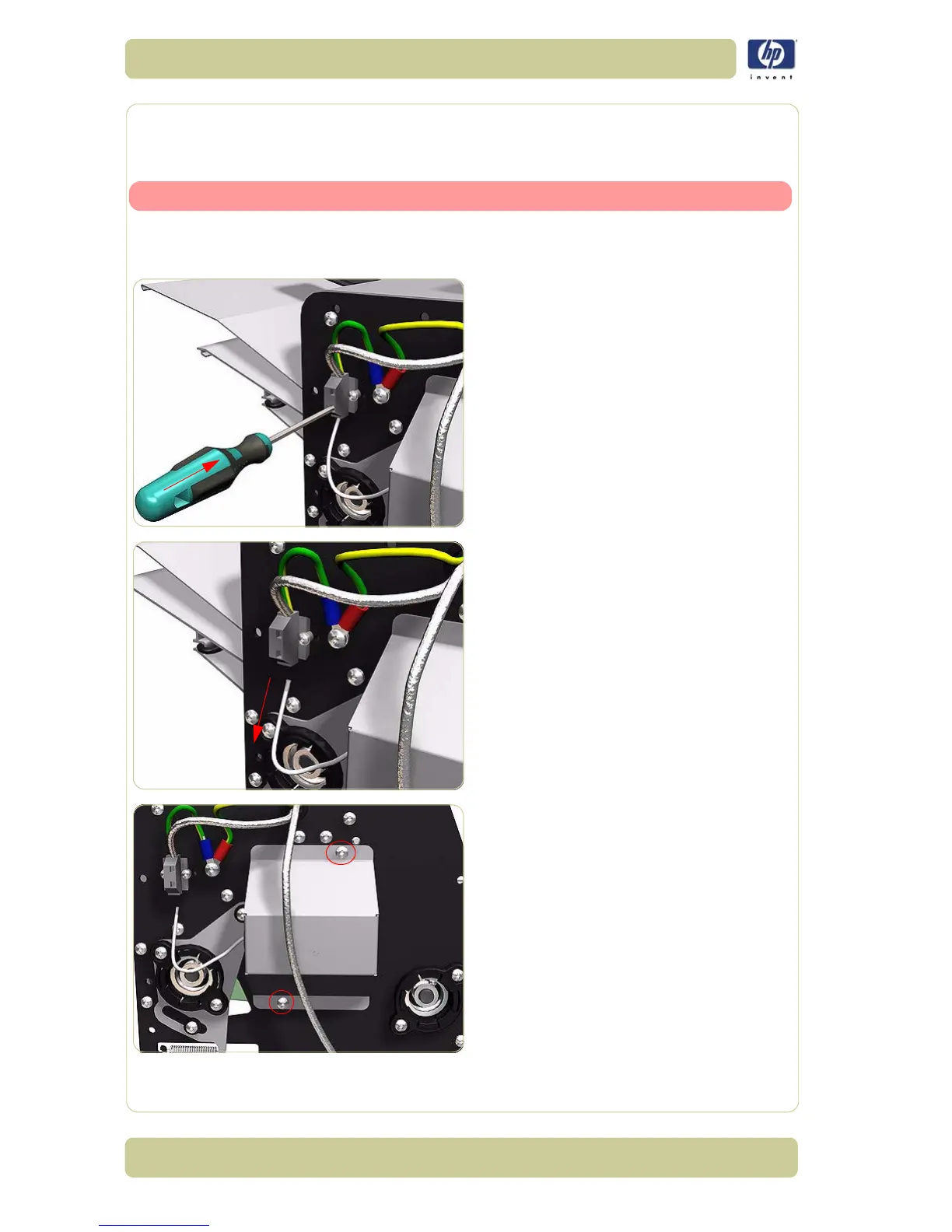

3. Disconnect the Heating Lamp Cable on the
left of the chassis, push in the retaining clip
with a screw driver and release the cable.
4. Remove the Heating Lamp Cable.
5. Remove two screws that secure the Left
Heating Lamp Cover.
