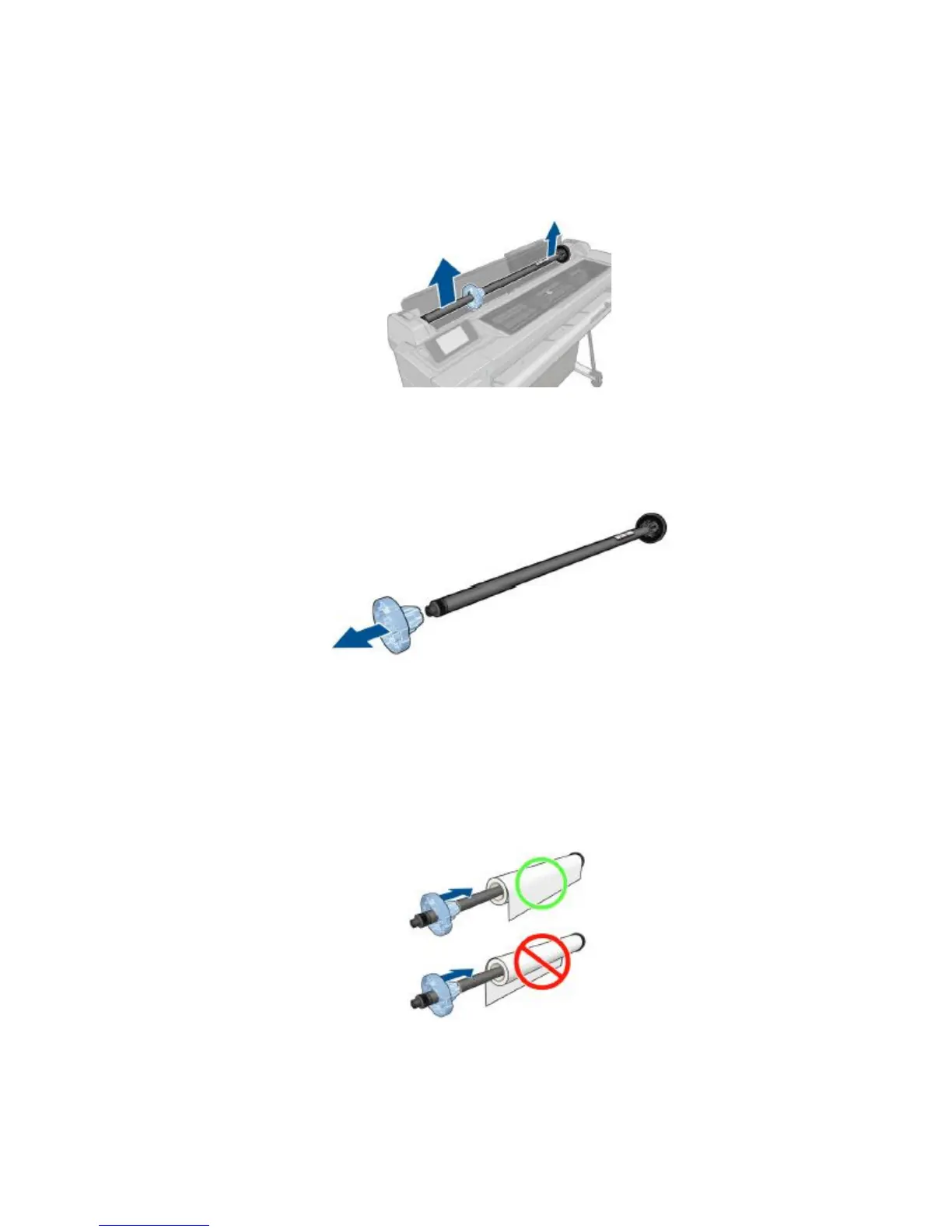

Remove the spindle from the printer
WARNING! Do not insert your fingers into the spindle supports during the
removal process.
The spindle has a stop at each end to keep the roll in position. The blue stop
can be removed to mount a new roll; it slides along the spindle to hold rolls
of different widths. Remove the blue paper stop from the end of the spindle.
If the roll is long, rest the spindle horizontally on a table and load the roll
on the table.
Slide the new roll onto the spindle. Make sure the paper type is oriented as
shown. If it is not, remove the roll, turn it 180 degrees and slide it back on to
the spindle. There are labels on the spindle showing the correct orientation.
Ensure both ends of the roll are as close to the spindle stops as possible.
